CBN

Question 1

Q: Is your company a manufacturer or a trading company?

Answer

A: We are professional manufacturer in industrial electrical equipment since 1992. Welcome to have online/offline factory tour for further communication.

Question 2

Q: Can you help me to select suitable products?

Answer

A: Sure, please send us an inquiry and tell us your demand, we have a professional team to support you in model selection til the order is placed.

Question 3

Q: What products do you have?

Answer

A: Moulded Case Circuit Breaker, Air Circuit Breaker, Earth Leakage Circuit Breaker, Miniature Circuit Breaker, Contactor, Motor Protection Circuit Breaker, etc.

Question 4

Q: Your MCCB seems perfect but what’s the difference between you and other suppliers? Because I find some cheaper price from others.

Answer

A: We strict in high quality. Products has low temperature rise, long life time and good corrosion resistance. Our materials are Mitsubishi PC, DuPont PA66, DMC-A/DMC-2, metal coating-corrosion resistance 72 hours, T2 copper bar, T2 copper pillar, T2 copper plate. All Products pass the test of CQC,CE,CB and TUV.

Question 5

Q: Do your products have a warranty?

Answer

A: Yes, 24 months warranty, and our products are 100% inspected. If any problems, let us know immediately, and we will give a satisfactory solution.

Question 6

Q: Do you inspect the finished products?

Answer

A: Yes, 100% inspection. Products passed all tests: micro resistance test, withstand voltage test, temperature rise test, short time delay characteristic test, long time delay characteristic test and instantaneous trip test for each phase.

Question 7

Q: Would you accept to use our logo?

Answer

A: Yes sure, we provide OEM/ODM/OBM/OPM service, consult us for details like MOQ and design.

Question 8

Q: How’s the delivery time?

Answer

A: Usually it takes about 25 days for production. If you have urgent requirements, please send us a list to check the stock. We have sufficient stock for materials.

Question 9

Q: What’s the payment term?

Answer

A: We have flexible payment terms, and accept TT, 30% deposit with 70% balance before shipment.

Question 10

Q: Can I become an agent / dealer?

Answer

A: Welcome! Please let me know your Country/Area first, we will have a check and then process it. Don’t hesitate to contact us for further cooperation.

Question 11

Q: Is there any discount?

Answer

A: Yes, for large quantities, we always support with better prices. Also, there are some seasonal promotions. Please contact us for a special discount.

Question 12

Q: How can I get the after-sales service?

Answer

A: For transportation issues, we will assist in troubleshooting and provide accessories and guidance. If the product cannot be repaired, we will send you replaced one in the next order. For installation issues, we will provide installation instructions or video guidance.

Question 13

Q: Can I visit your company?

Answer

A: Welcome! We are in Liushi Town, Wenzhou City, Zhejiang, China. Let us know when you are planning to visit.

Item No.	100AF		250AF	400AF	800AF
Number of poles	2P	CBN102C
	3P	CBN103C	3P CBN203C	3P CBN403C	3P CBN803C
	4P	CBN104C
Electrical characteristics as per IEC60947 and EN60947-2
Rated current(A)	15~100		100~250	250~400	500~800
Rated operational voltage(V) Ue	AC690		AC690	AC690	AC690
Rated insulation voltage(V) Ui	AC750		AC750	AC750	AC750
Rated impulse withstand voltage(kV) Uimp	8
Release type	Magnetic Pressure
Overload protection	Bimetal
Instantaneous release	Unadjustable
Mounting	Screw fixing

CBN

CBN Moulded Case Circuit Breaker

Application

Compliance with standards

Protection

Functions and Characteristics

Dimension

100A

250 AF

400 AF

800AF

Tripping Curves

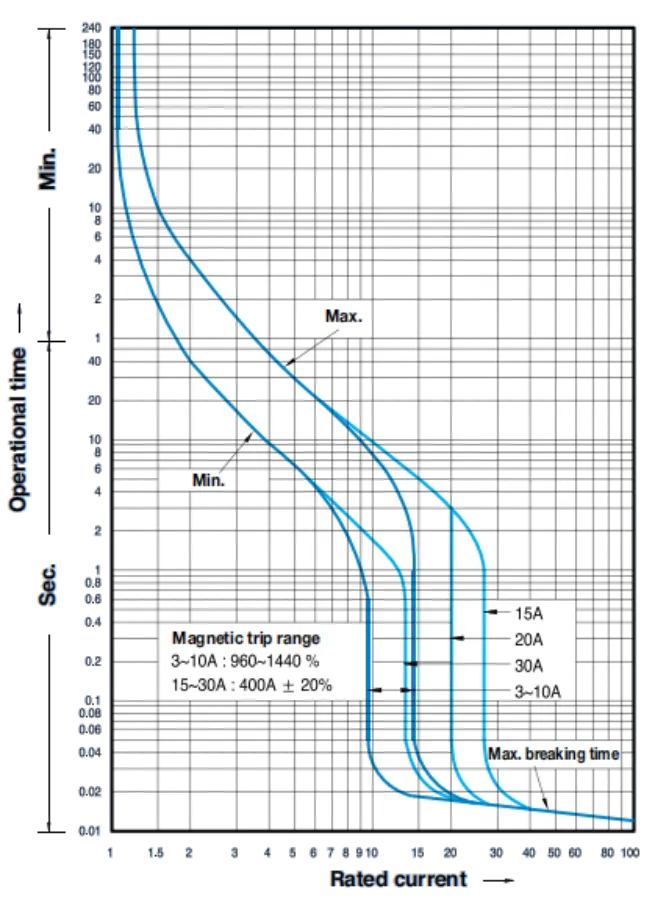

Rated current-3~30A

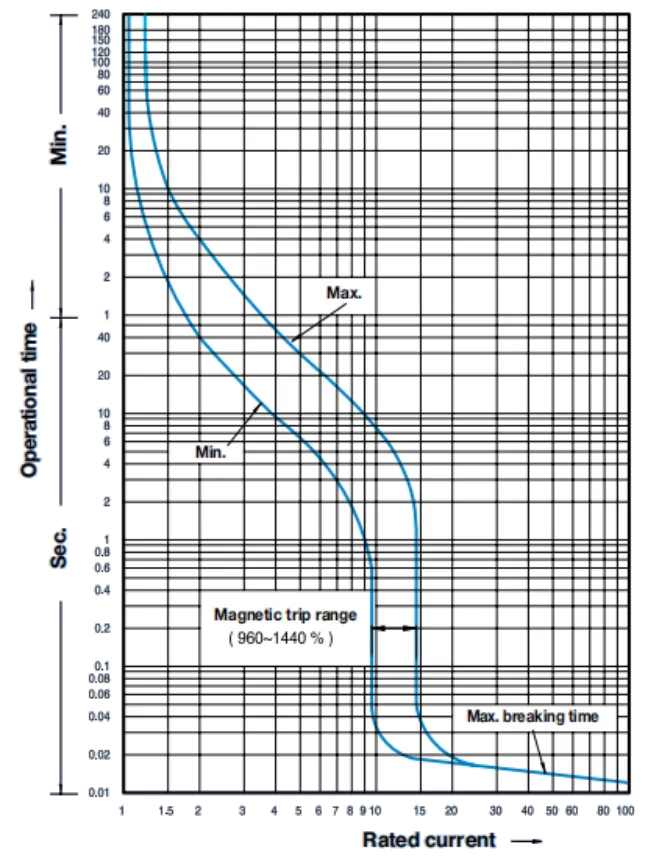

Rated current-40~100A

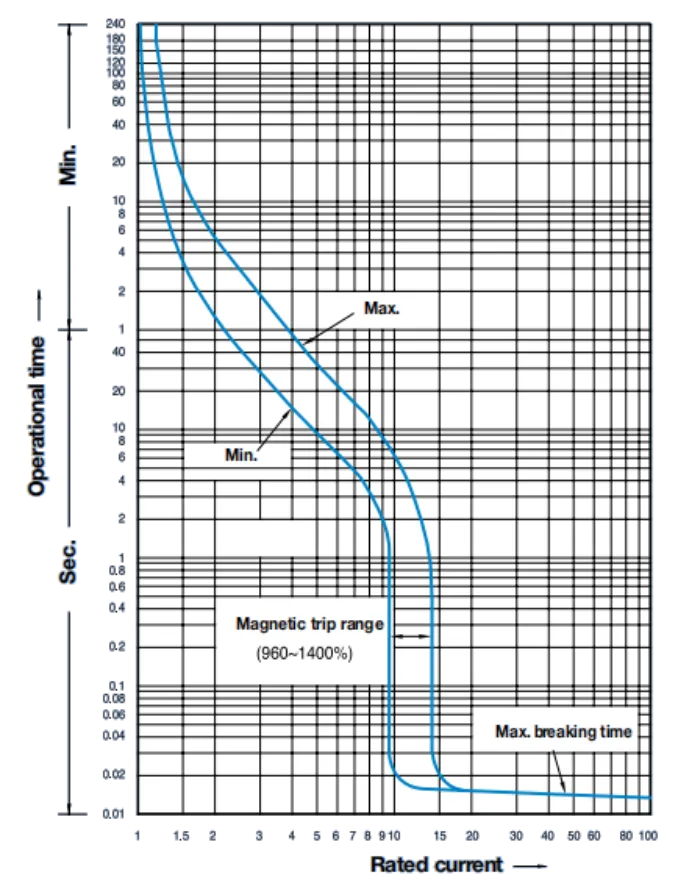

Rated current-100~225A

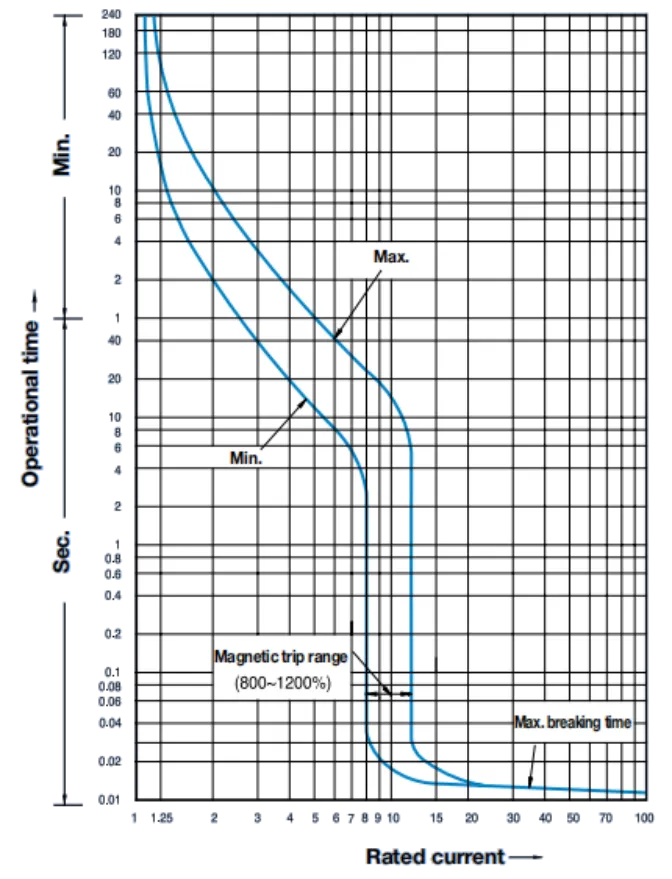

Rated current-250~400A

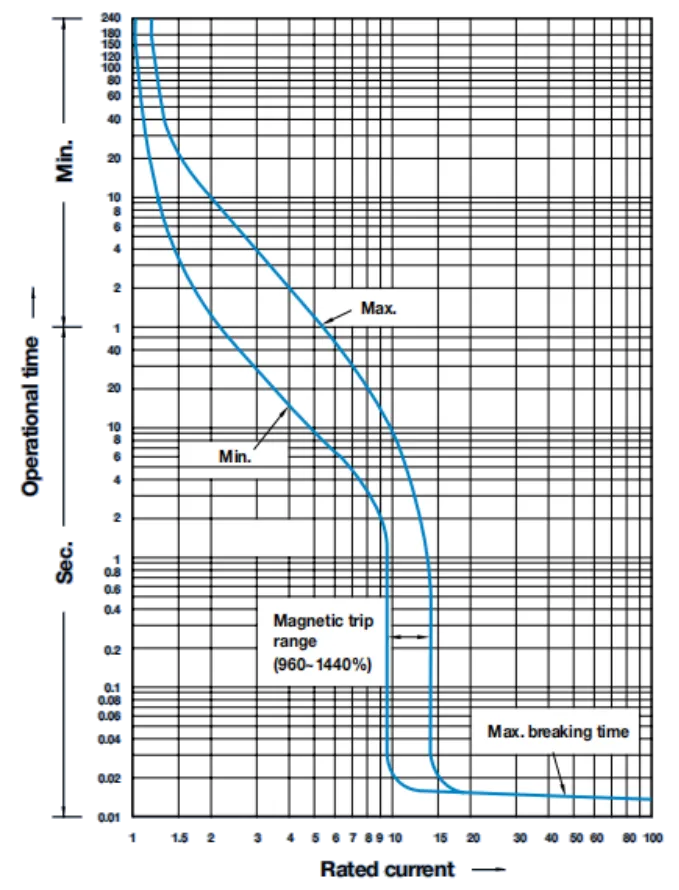

Rated current-250A

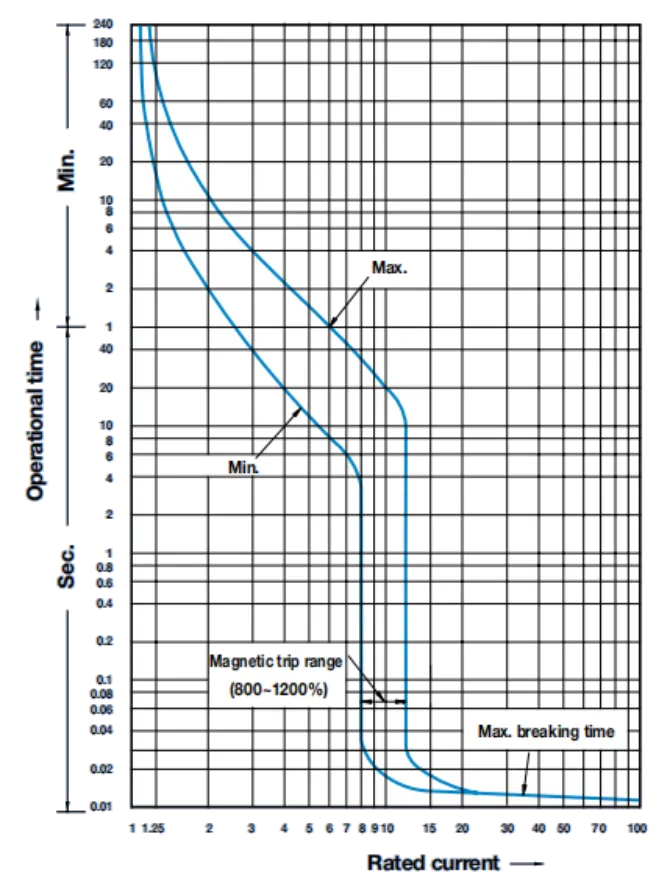

Rated current-500~800A

Advantage

Customized to your design

Frequently Asked Questions
