CEZC series of MCCB perfect function,ensure 100% reliability and continuity of power supply.
CEZC

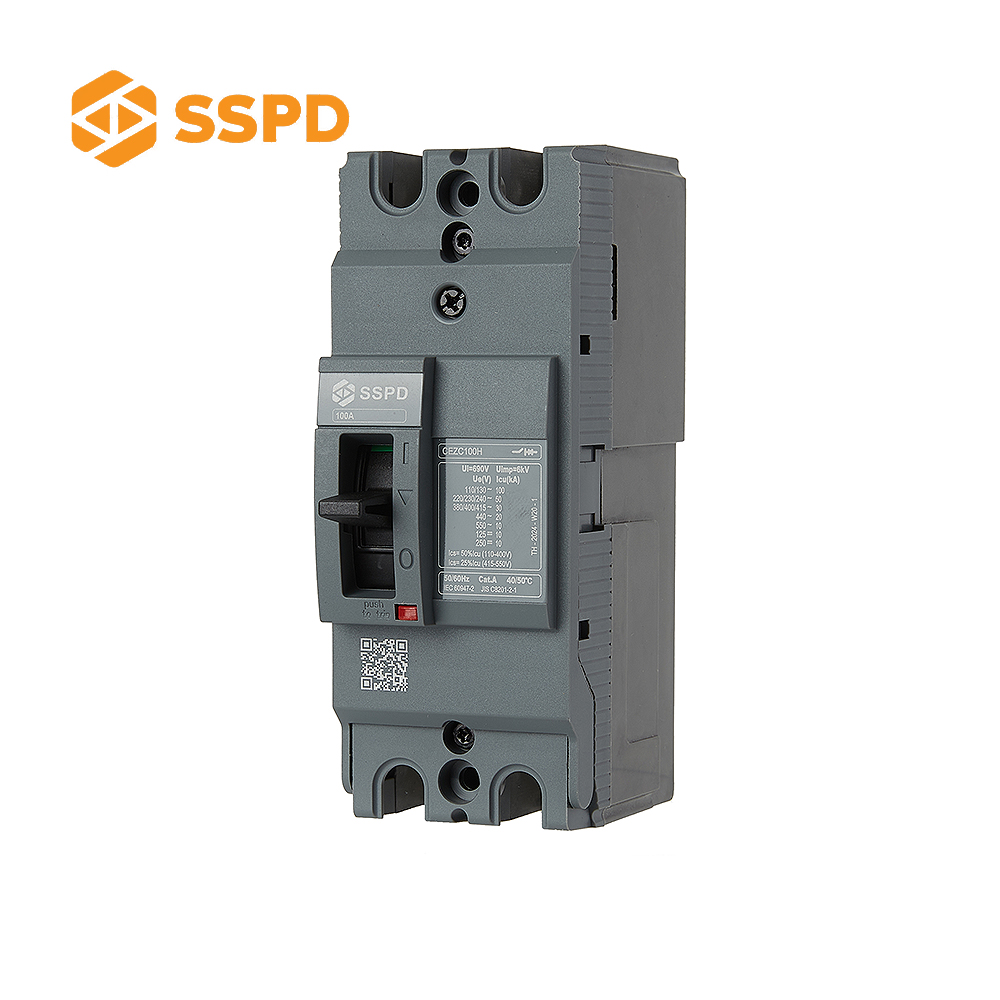

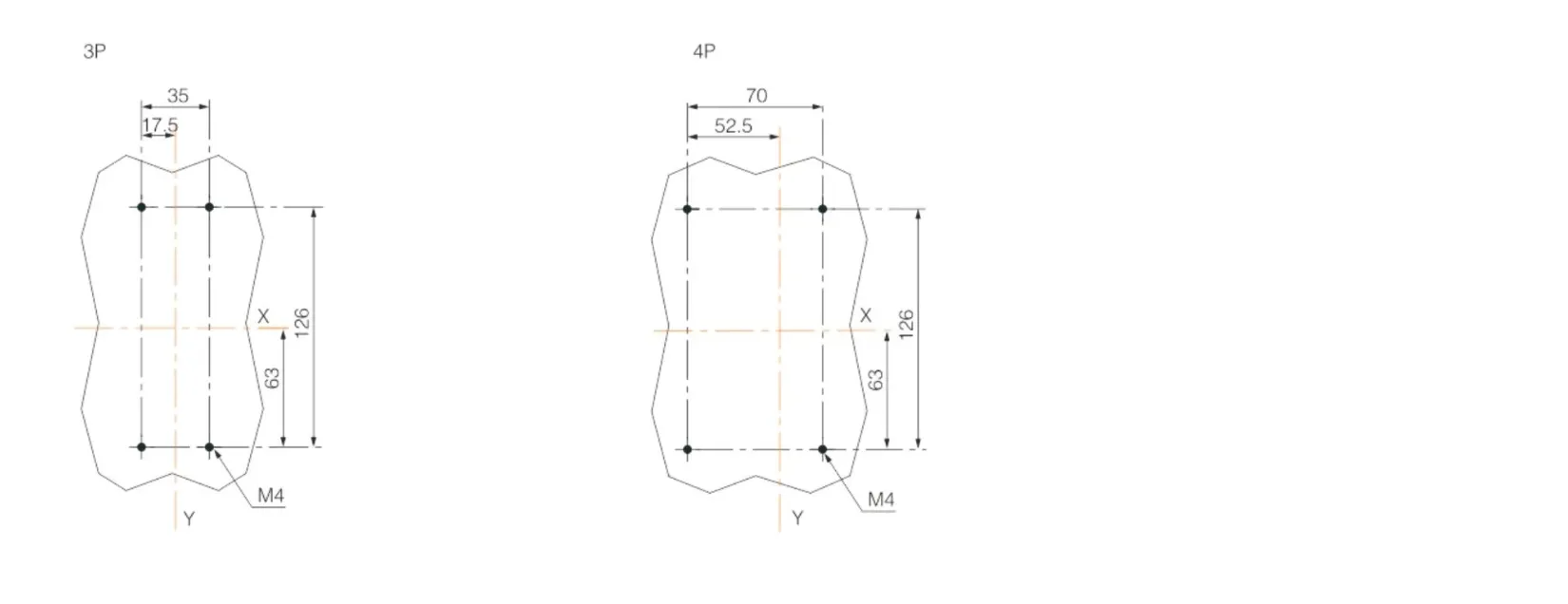

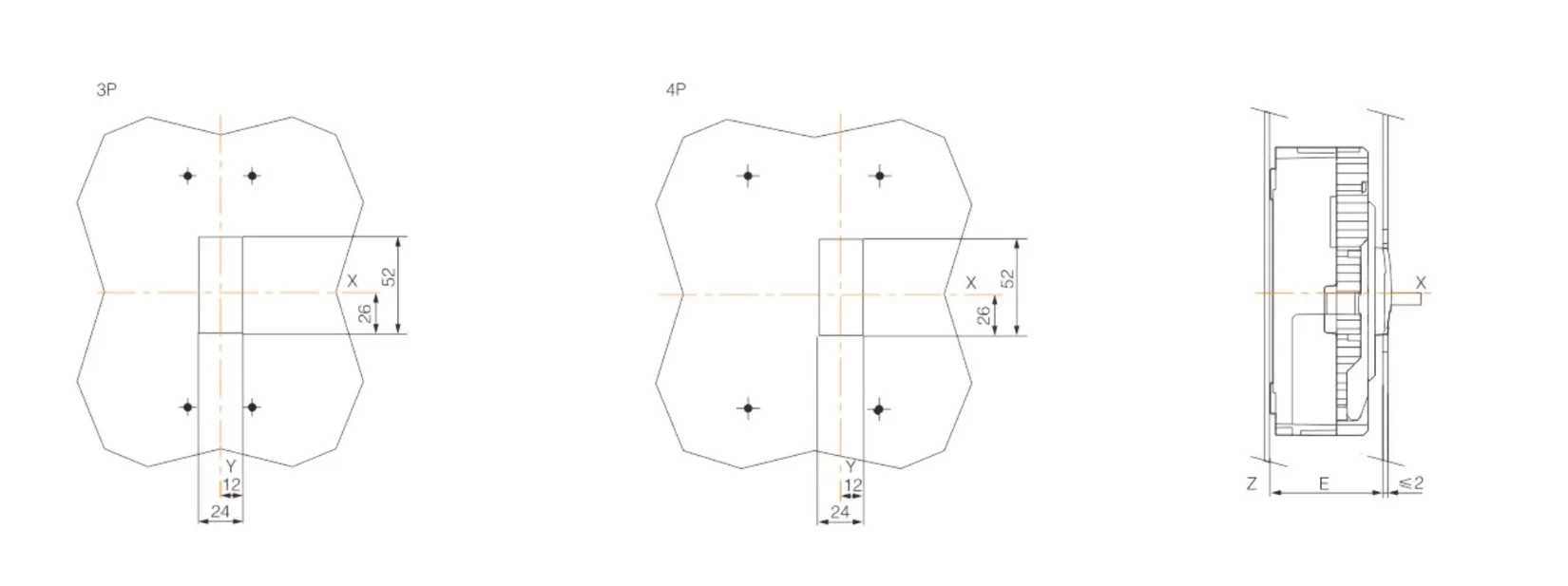

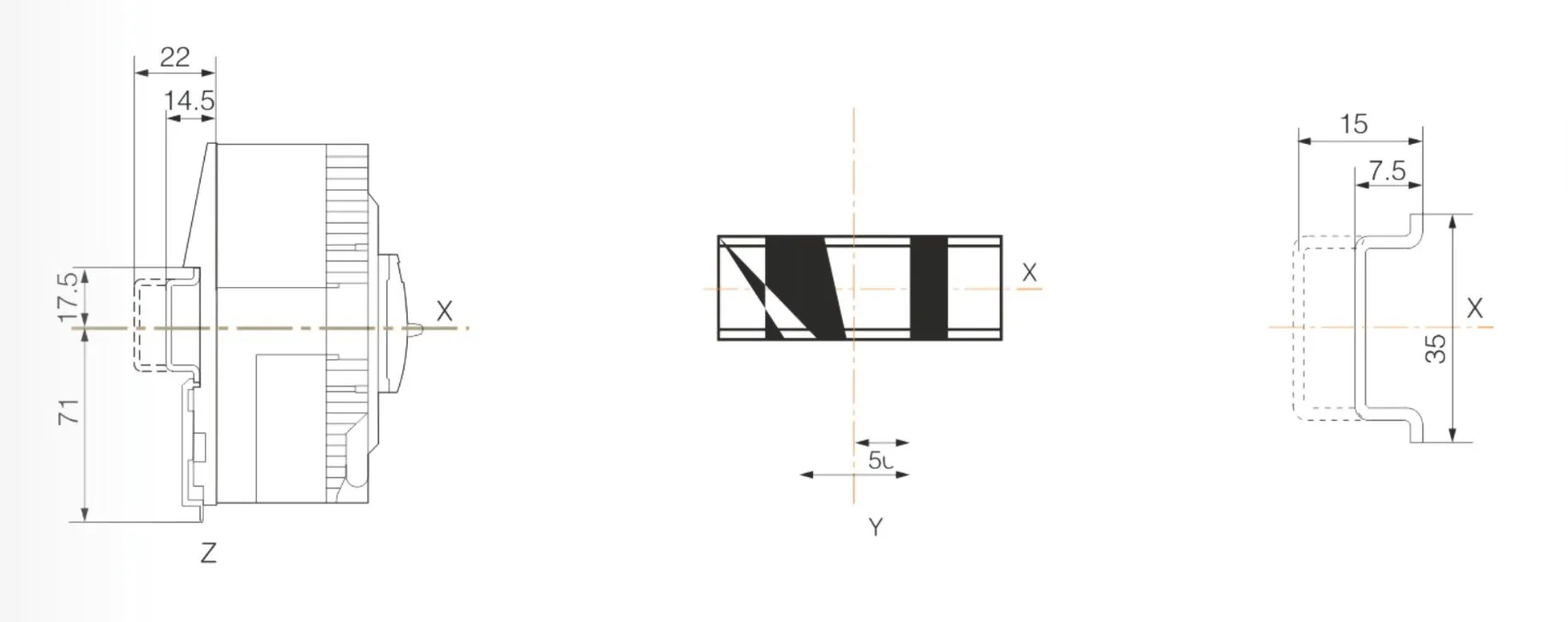

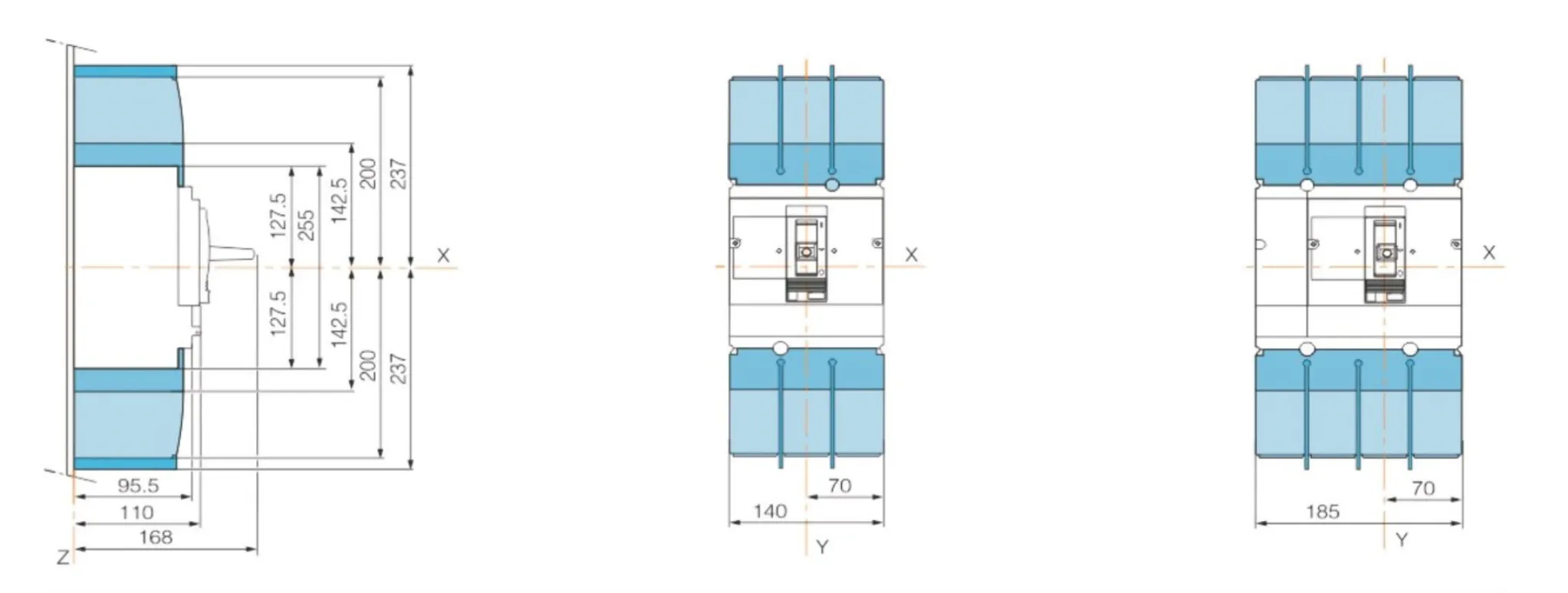

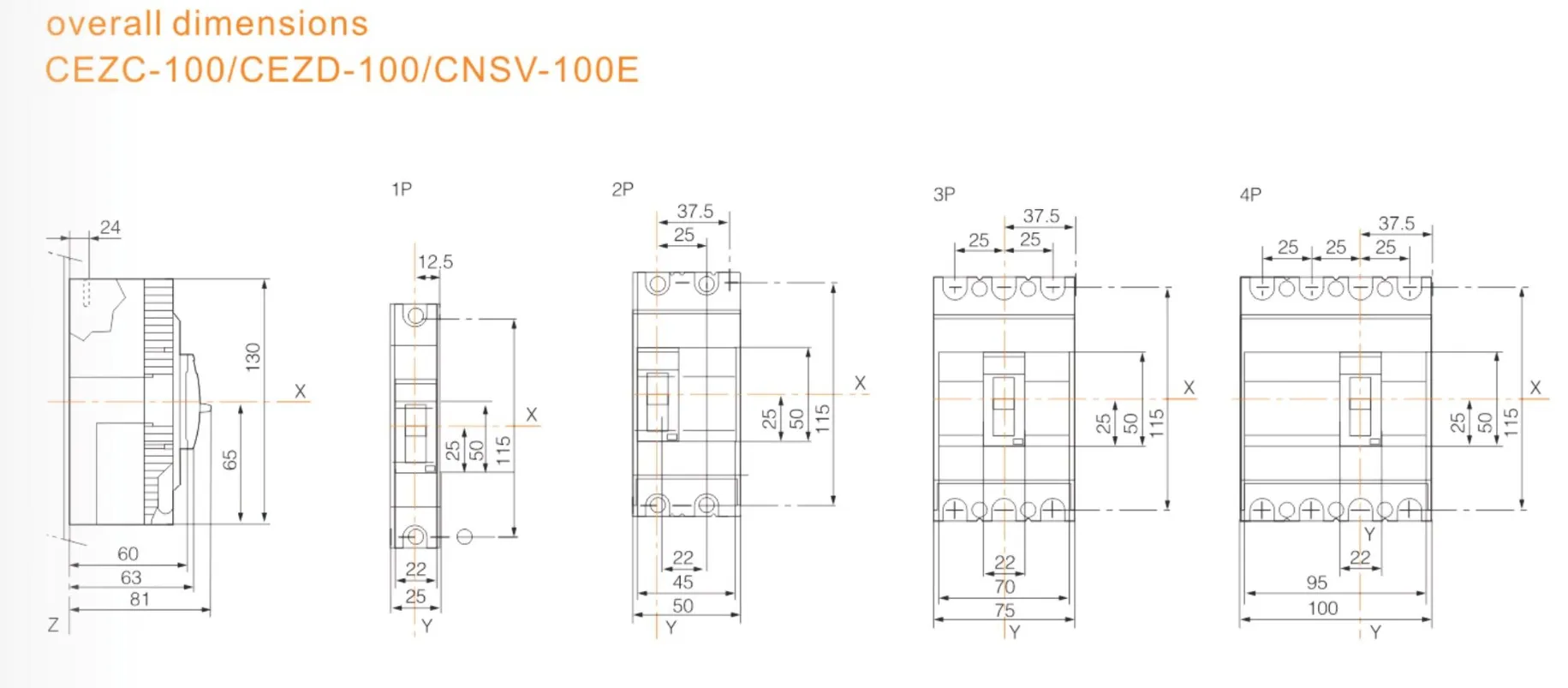

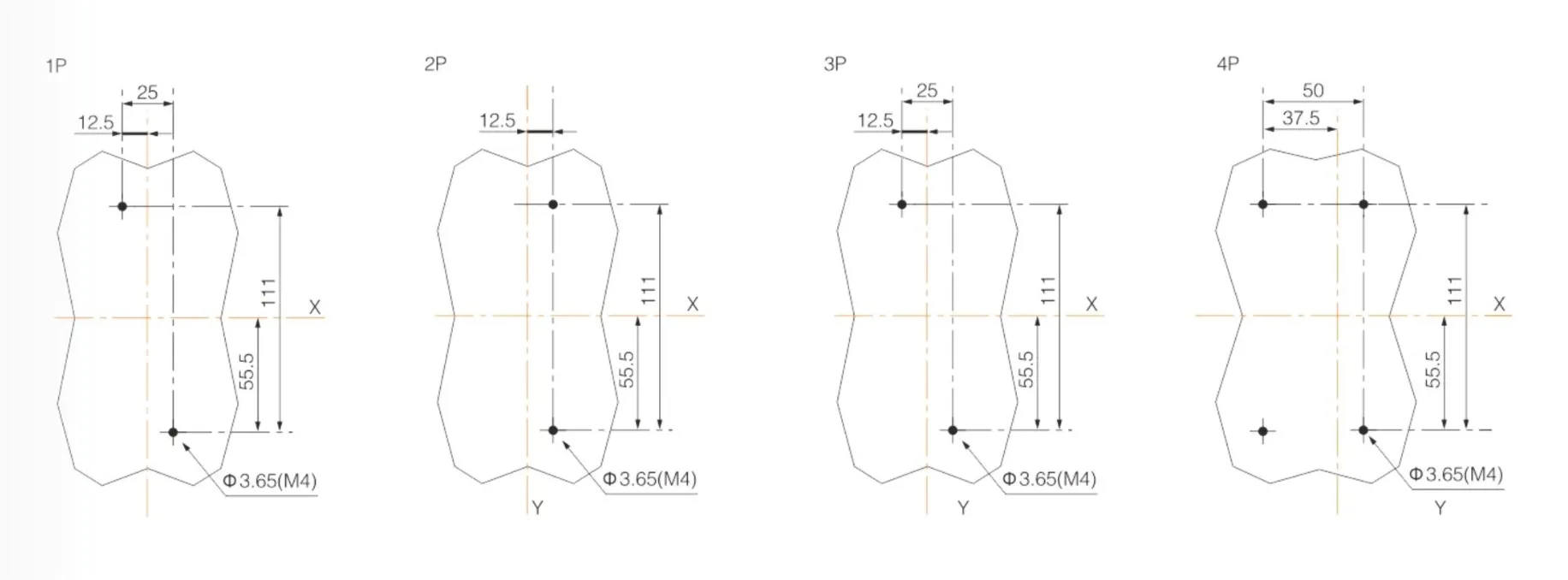

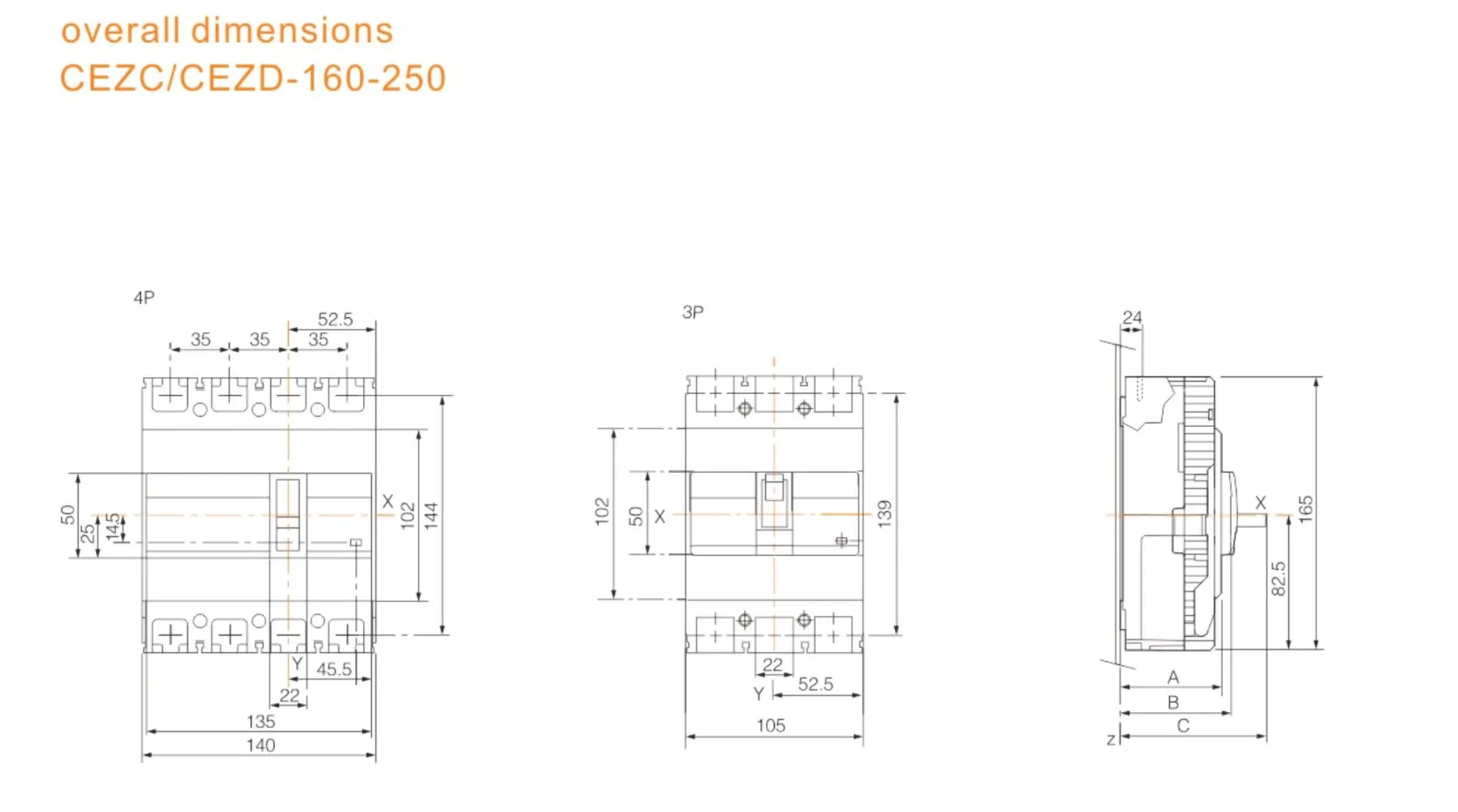

CEZC Moulded Case Circuit Breaker
Usage
CEZC series of MCCB are used in the distribution network of AC 50/60Hz, rated operational voltage 440V, and rated current from 15A to 630A. It is used for distributing power and protecting circuits, power, and electrical equipment from overload and short circuit damage, which improves the reliability and continuity of power supply.
Perfect function
The breaking capacity covers the common breaking in Level ll power distribution areas and the electromechanical market: 25KV, 36KV, and 50KV. Including 1P, 2P, 3P and 4P products.
A comprehensive range of protection, including low-voltage distribution systems protection, motor protection, and earth leakage protection.
Get Quote Now
Get Free Catalog
Functions and Characteristics
| Item No. | CEZC100 CEZC250 | CEZC400 CEZC630 | |
| Number of poles | 1P, 2P, 3P, 4P | 3P, 4P | |
| Control | Manual | with toggle/with direct or extended rotary handle |
|
| Connections | Fixed | front connections/rear connections | |
| Electrical characteristics as per IEC60947 and EN60947-2 | |||
| Rated insulation voltage | Ui | 690V | |
| Rated impulse withstand voltage | Uimp | 6 KV | |
| Rated operational voltage | Ue | AC 50/60Hz,440V | |
| Isolation Function — | — | ||
| Utilization category | A | ||
| Endurance(C-O cycles) | Mechanical | 15000 10000 | 10000 |
| Electrical 440V | 5000 5000 | 4000 | |
| Protectiom | |||
| Release | Thermal magnetic | Thermal magnetic Electronic | |
| Overload protection | ■ | ■ Ir(In x….) | |
| Short-circuit protection | ■ | ■ Isd(Ir x….) | |
| Earth-leakage protection | — | — ■ | |
| Indication and control auxiliaries | |||
| Auxiliary contact AX and Alarm contact AL | ■ | ||
| Combined AX + AL | ■ | ||
| SHT shunt relesae | 24V, 220V, 380V | ||
| UVR under-voltage release | ■ | ||
| Installation/connection | |||
| Accessories | Terminal extensions | ■ | ■ |
| Terminal shields | ■ | ■ | |
| Phase barriers | ■ | ■ | |
Ultimate Breaking Capacity (kA rms) Icu
| CEZC100B | CEZC100F | CEZC100N | CEZC100H | CEZC250F | CEZC250N | CEZC250H | ||||
| Number of poles | 3 | 3 | 1 | 3-4 | 1 | 2-3-4 | 3 | 3 | 2-3 | |
| Rated current (A) | at 40 °C | 15, 16, 20, 25,30, 32, 40, 45,50, 60, 63, 75,80, 100 | 100, 125, 150,160, 175, 200,225, 250 | |||||||
| AC 50/60 Hz | 110/130 V | 10 | 25 | 25 | 25 | 50 | 100 | 25 | 50 | 85 |
| 220/230/240 V | 10 | 25 | 18 | 25 | 25 | 100 | 25 | 50 | 85 | |
| 380 V | 7.5 | 10 | 2.5 | 18 | 5 | 30 | 18 | 25 | 36 | |
| 400/415 V | 7.5 | 10 | 2.5 | 15 | 5 | 30 | 18 | 25 | 36 | |
| 440 V | 5 | 7.5 | – | 10 | – | 20 | 15 | 20 | 25 | |
| 550 V | 2.5 | 5 | – | 5 | – | 10 | 5 | 8 | 10 | |
| DC | 125 V (1P) | – | 5 | 5 | 5 | 10 | 10 | 5 | 20 | 30 |
| 250V (2P in series） |
– | 5 | – | 5 | – | 10 | 5 | 20 | 30 | |
| CEZC250N | CEZC250H | CEZC400N | CEZC400H | CEZC630N | CEZC630H | |||
| Number of poles | 4 | 4 | 3-4 | 3-4 | 3-4 | 3-4 | ||
| Rated current (A) | at 40 °C | 63, 80, 100, 125,150, 160, 175, 200, 225, 250 | 320, 350, 400 | 400, 500, 600 | ||||
| AC 50/60 Hz | 220/230 V | 50 | 85 | 40 | 70 | 40 | 70 | |
| 380 V | 25 | 36 | 36 | 50 | 36 | 50 | ||
| 400/415 V | 25 | 36 | 36 | 50 | 36 | 50 | ||
| 440 V | 20 | 25 | 36 | 50 | 36 | 50 | ||
| 550 V | 8 | 10 | – | – | – | – | ||
| DC | 125 V (1P) | 20 | 30 | – | – | – | – | |
| 250V (2P in series） |
20 | 30 | – | – | – | – | ||
Tripping Curves
Packing Data
| Model | Qty/CTN(pcs) | GW(kg) | NW(kg) | Carton Size(cm) |
| CEZC-100 1P | 80 | 26.5 | 23.5 | 48.5*29.5*26 |
| CEZC-100 2P | 40 | 23 | 20 | 48.5*28.5*25 |
| CEZC-100 3P | 30 | 24 | 21 | 48.5*29.5*26 |
| 20 | 16 | 14 | 42*29.5*20 | |
| CEZC-100 4P | 20 | 21 | 19 | 48.5*29.5*23 |
| CEZC-250 3P | 16 | 25.2 | 22.4 | 45.5*36*24 |
| CEZC-250 4P | 20 | 31.4 | 28 | 58.5*36*23 |
| CEZC-400 3P | 4 | 24 | 22.4 | 33*31*30.5 |
| CEZC-400 4P | 4 | 30.5 | 27.5 | 42.5*32*30.5 |
| CEZC-630 3P | 4 | 24.8 | 22.3 | 33*31*30.5 |
| CEZC-630 4P | 4 | 31.5 | 28.5 | 42.5*32*30.5 |
