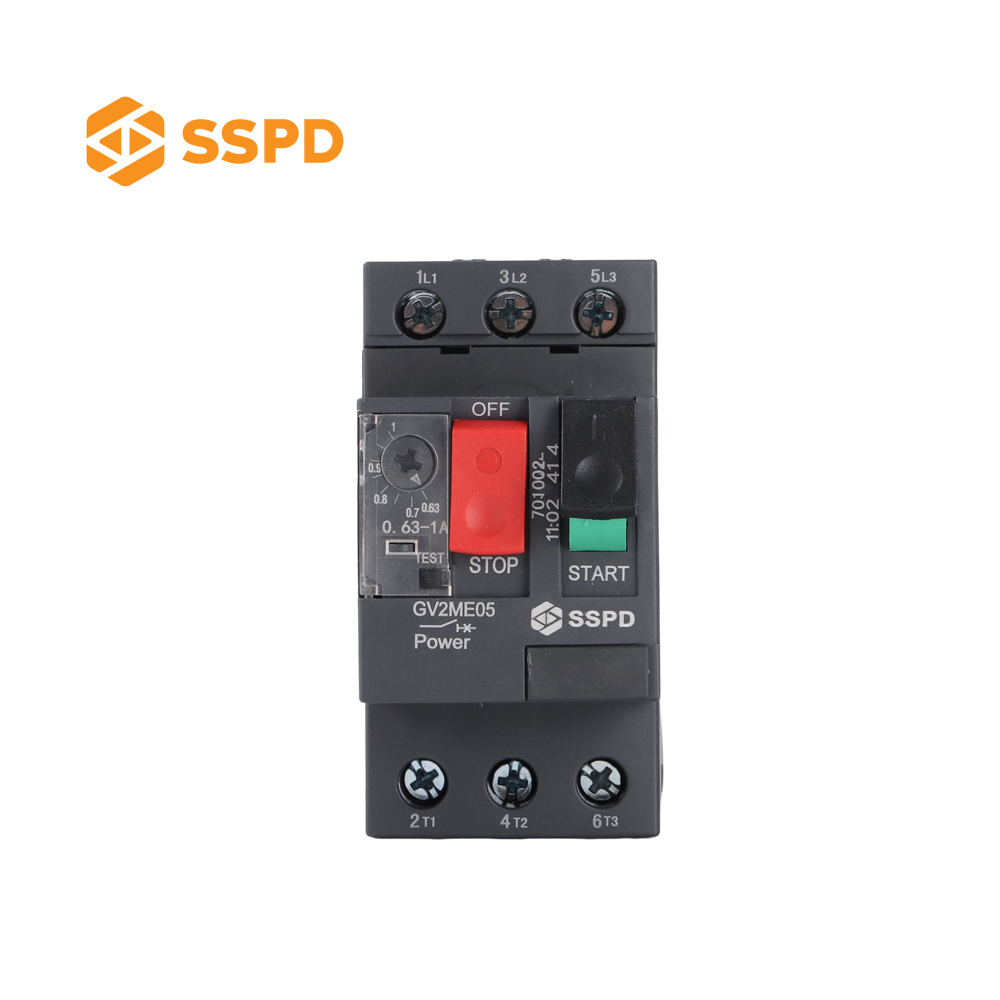

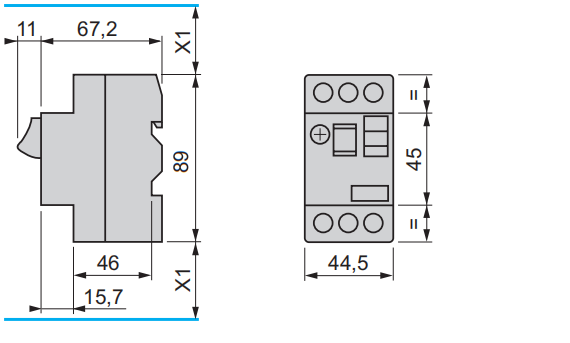

SSPD Motor Protection Circuit Breaker CGV2 ME series is thermal-magnetic circuit breaker for motor protection and control.
CGV2ME series motor protection circuit breaker are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-32A power circuit, as a full-voltage starter to start and cut off the motor, under the AC-3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

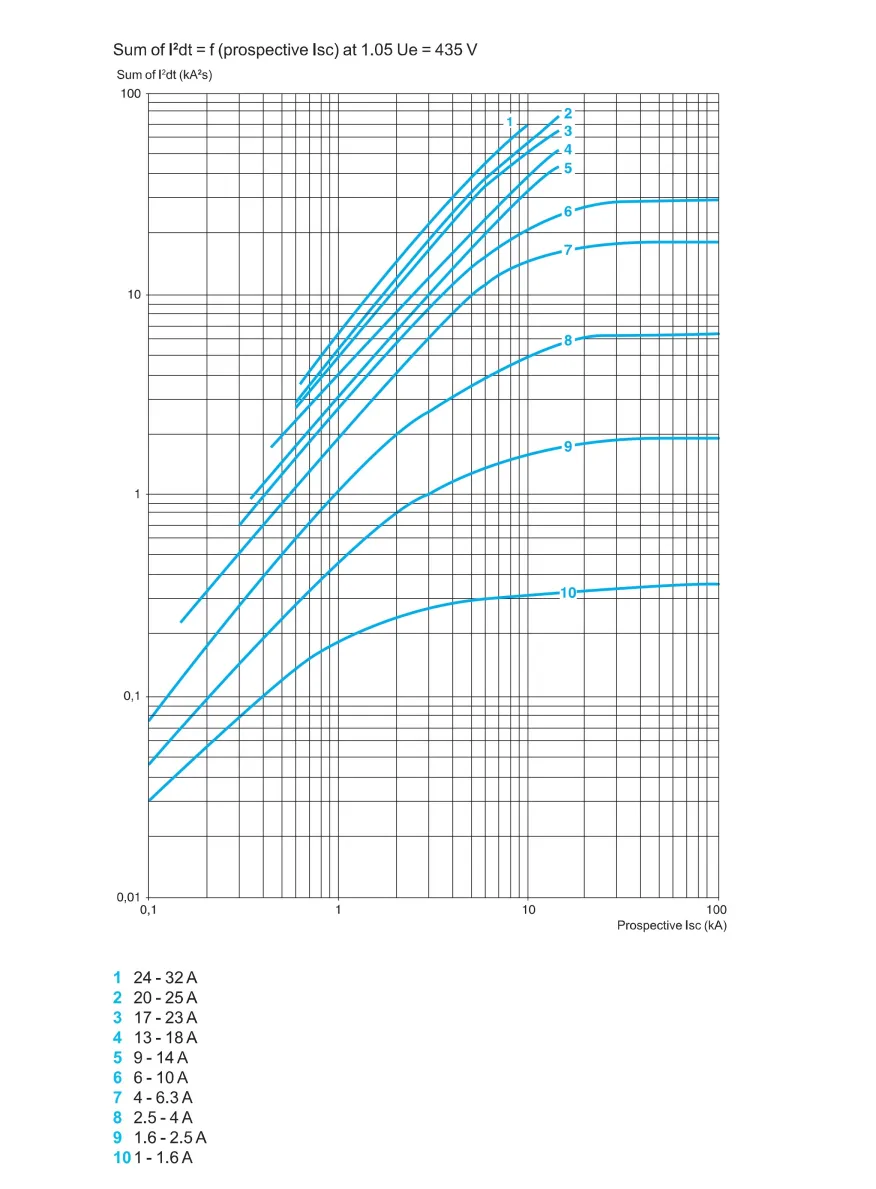

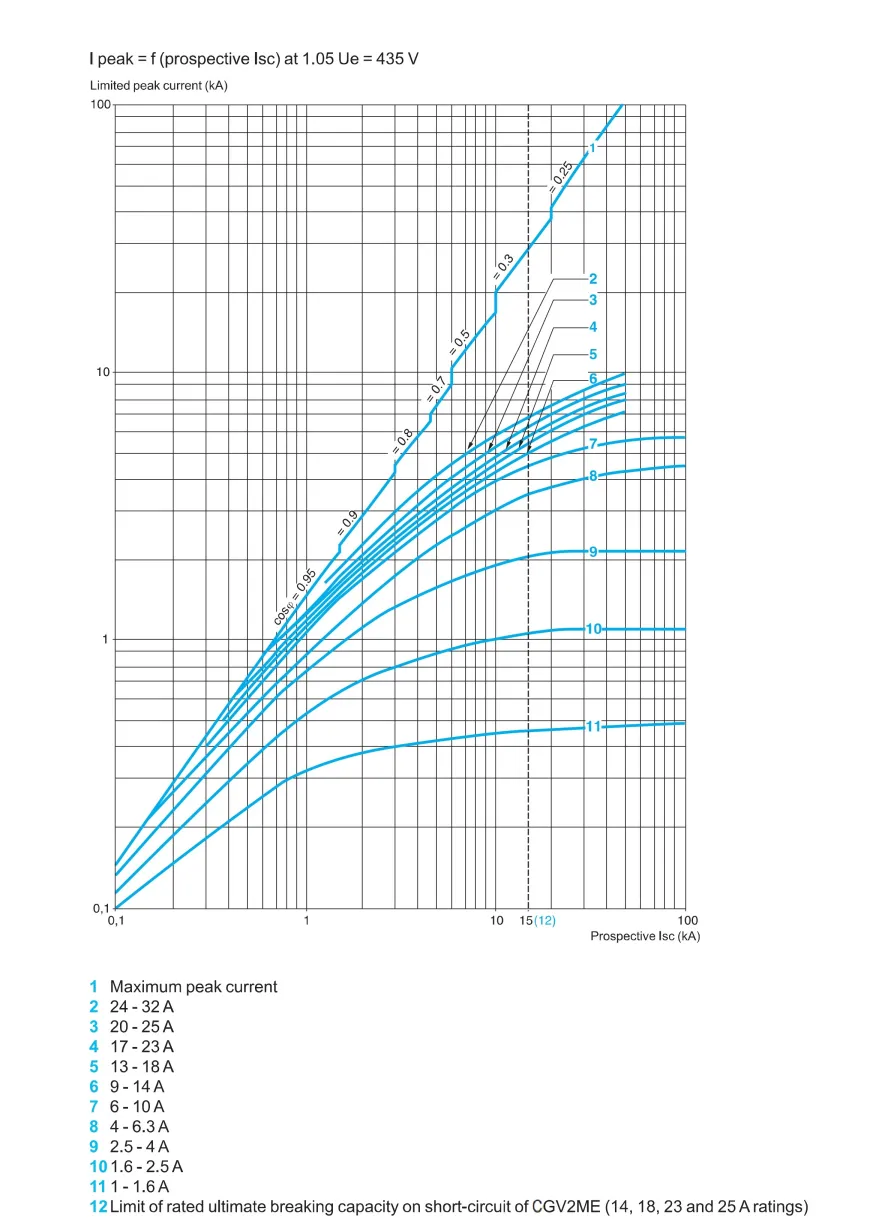

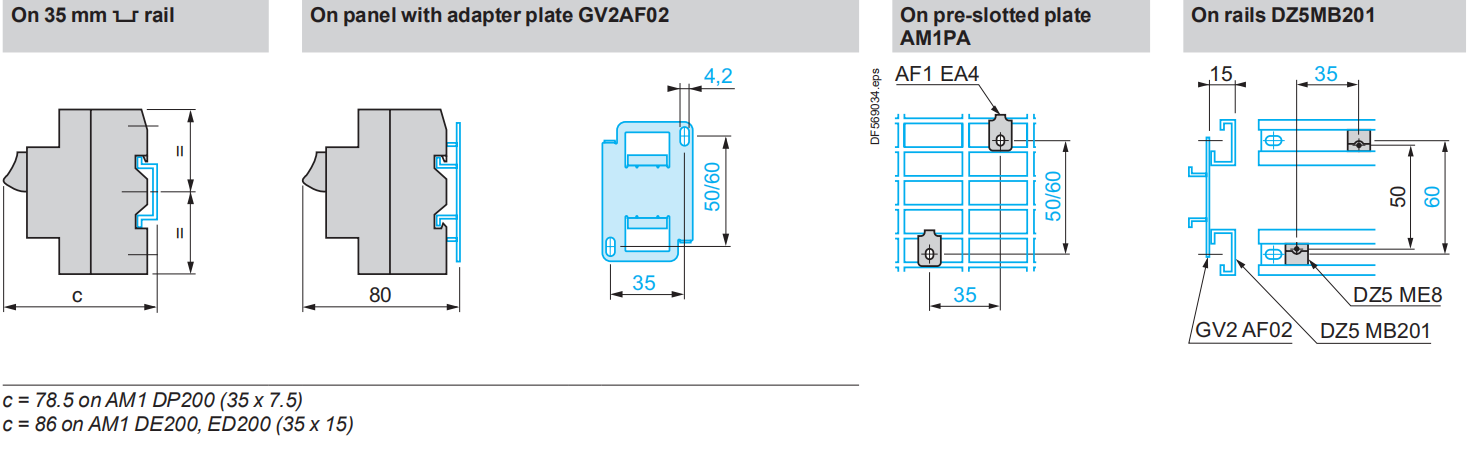

| CGV2 | Setting range(A) | Standard power ratings of 3-phase motors 50/60 Hz in category AC-3(KW) | Magnetic tripping current Id ± 20 %(A) | ||
| 400/415V | 500V | 690V | |||
| ME01 | 0.01-0.16 | – | – | – | 1.5 |
| ME02 | 0.16-0.25 | 0.06 | – | – | 2.4 |
| ME03 | 0.25-0.4 | 0.09 | – | – | 5 |
| ME04 | 0.4-0.63 | 0.12 0.18 | – | 0.37 – | 8 |
| ME05 | 0.63-1 | 0.25 | – | 0.55 | 13 |
| ME06 | 1-1.6 | 0.37 0.55 – | 0.37 0.55 0.75 | – 0.75 0.11 | 22.5 |
| ME07 | 1.6-2.5 | 0.75 | 1.1 | 1.5 | 33.5 |
| ME08 | 2.5-4 | 1.1 1.5 | 1.5 2.2 | 2.2 3 | 51 |
| ME10 | 4-6.3 | 2.2 | 3 | 4 | 78 |
| ME14 | 6-10 | 3 4 | 4 5.5 | 5.5 7.5 | 138 |
| ME16 | 9-14 | 5.5 – | 7.5 – | 9 11 | 170 |
| ME20 | 13-18 | 7.5 | 9 | 15 | 223 |
| ME21 | 17-23 | 9 | 11 | 18.5 | 327 |
| ME22 | 20-25 | 11 | 15 | – | 327 |
| ME32 | 24-32 | 15 | 18.5 | 22 | 416 |
| Model | Qty/CTN(pcs) | GW(kg) | NW(kg) | Carton Size(cm) |
| CGV2 ME | 50 | 15 | 13.5 | 48.5*26.5*18.5 |
