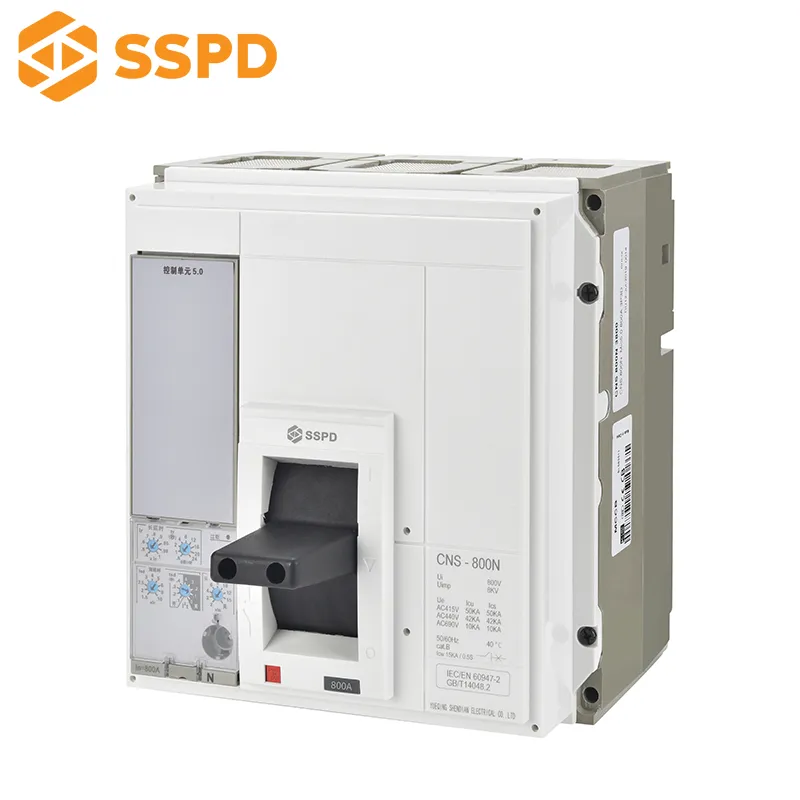

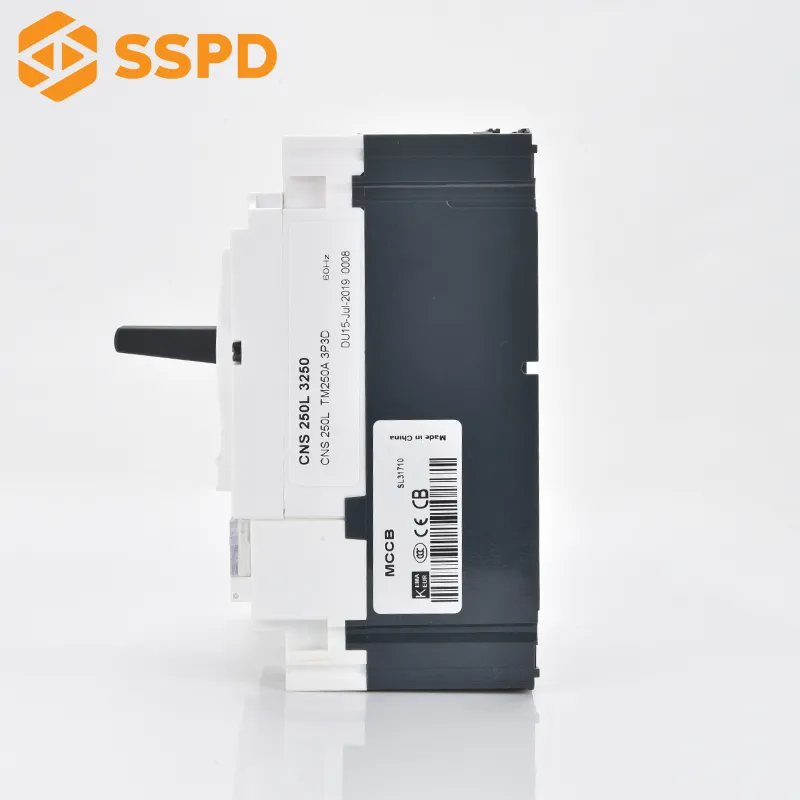

CNSD Moulded Case Circuit Breaker

Usage

CNSD dual breaking contact structure and the energy release system ensure stable and reliable protection and have excellent current-limiting characteristics. A transparent cover protects your trip unit from being improperly set.

Accessories like rotary handles, motor operation mechanisms can be installed.

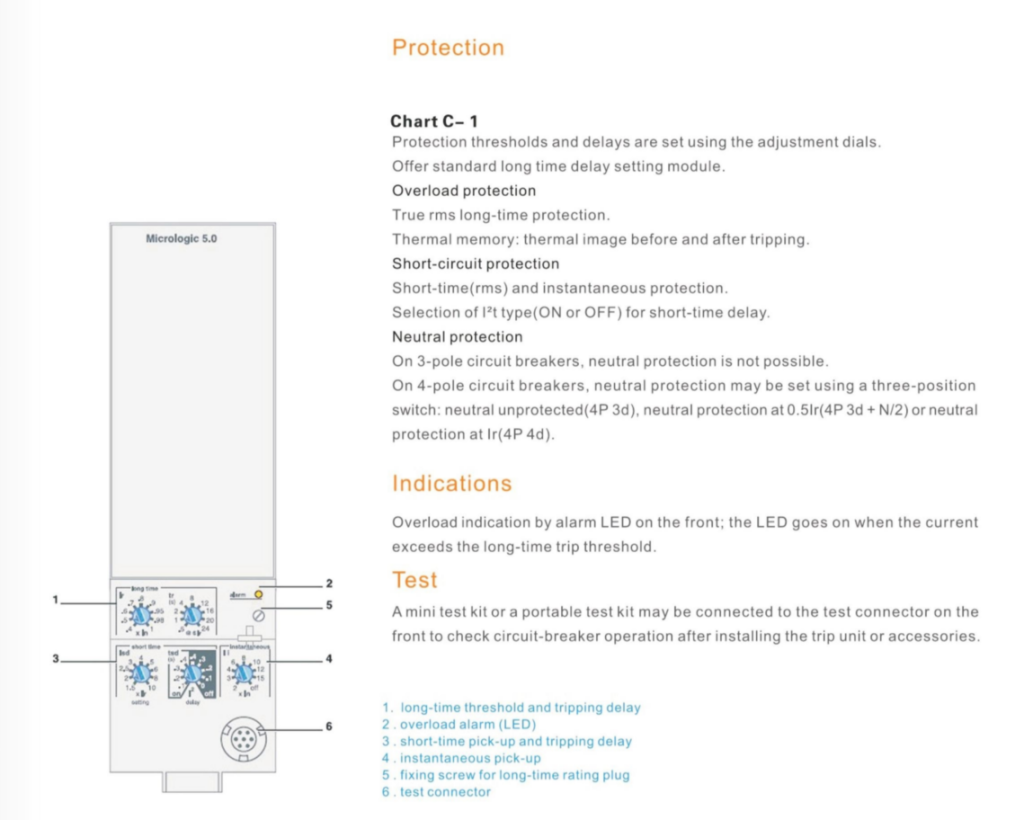

Protection

Overload protection: Thermal protection (lr)
Thermal overload protection is based on a bimetal strip providing an inverse time curve l2t, corresponding to a temperature rise limit. Above this limit, the deformation of the strip trips the circuit breaker operating mechanism.

Overload protection has the following characteristics:

  • It can be adjusted in amps from 0.7 to 1 times the rating of the trip unit(16A to 250A),
  • corresponding to settings from 11 to 250A for the range of trip units.

Anon-adjustable time delay.

Short-circuit protection: Magnetic protection (Im) Short-circuit protection with a fixed or adjustable pick-up lm that initiates instantaneous tripping if exceeded.

  • TM-D: fixed pick-up, Im, for 16-160A ratings and adjustable from 5 to 10 x ln for 200 and 250A ratings.
Get Quote Now

    sales_05@shendianele.com

    Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

    Get Free Catalog

      sales_05@shendianele.com

      Quick Help: Attachments will be downloaded automatically after form submission!

      Technical Data
      Dimension
      Tripping Curves
      Packing Data
      Advantage
      Video

      Functions and Characteristics

      Item No.CNSD100-250CNSD400-630CNSD800-1600
      Number of poles3P, 4P
      ControlManualwith toggle/with direct or extended rotary handle
      ConnectionsFixedfront connections
      Plug-infront connections/rear connections
      Electrical characteristics as per IEC60947 and EN60947-2
      Rated current(A)In16,25,32,40,50,63,80,100,125,160,200,250400,500,630800, 1000, 1250, 1600
      Rated insulation voltage(V)Ui800
      Rated impulse withstand voltage(kV)Uimp8
      Rated operational voltage(V)UeAC 50/60Hz, 690V
      Utilization categoryA
      Breaking capacity levelsF      N     HN            H
      Breaking capacity (kA rms)
      AC 50/60 Hz  380/415 V      		lcu36,    50,   7050，        70
      Service breaking capacity (kA rms)
      AC 50/60 Hz  380/415 V      		lcs36,    50,   7050，        70
      Operation performanceMechanical200001000010000
      Electrical1000050005000
      ProtectionChart B-1   B-2Chart C-1
      Indication and control auxiliaries
      Auxiliary switch■■
      MX Shunt coil■■
      MN under-voltage coil■■

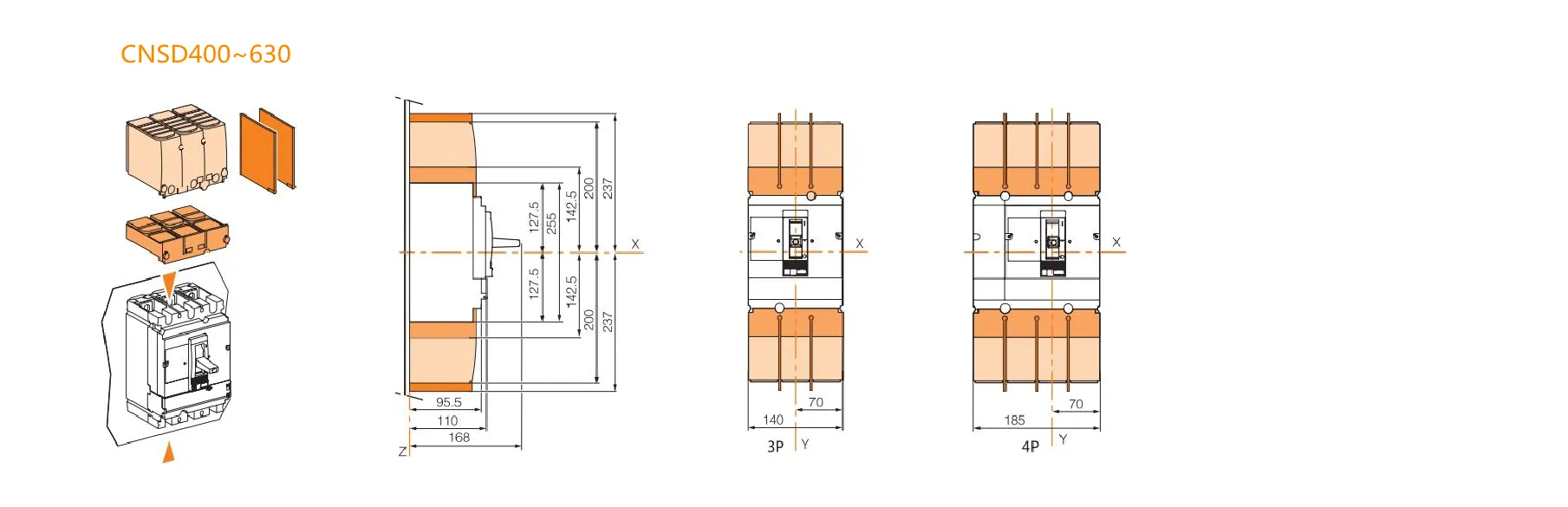

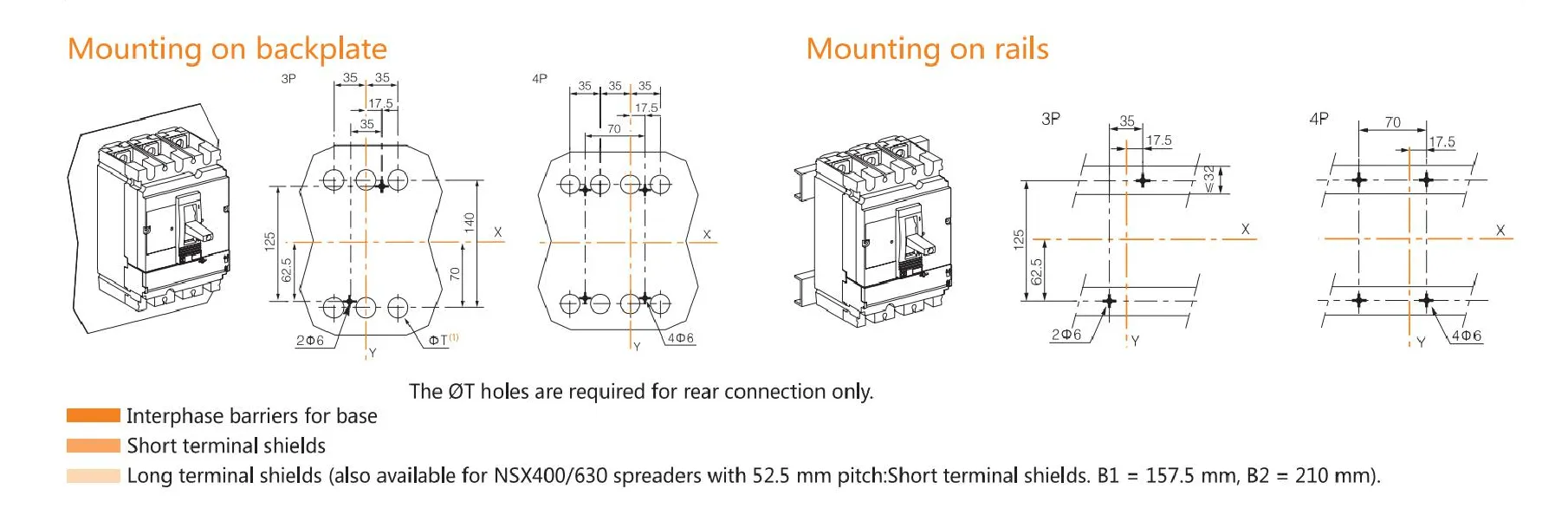

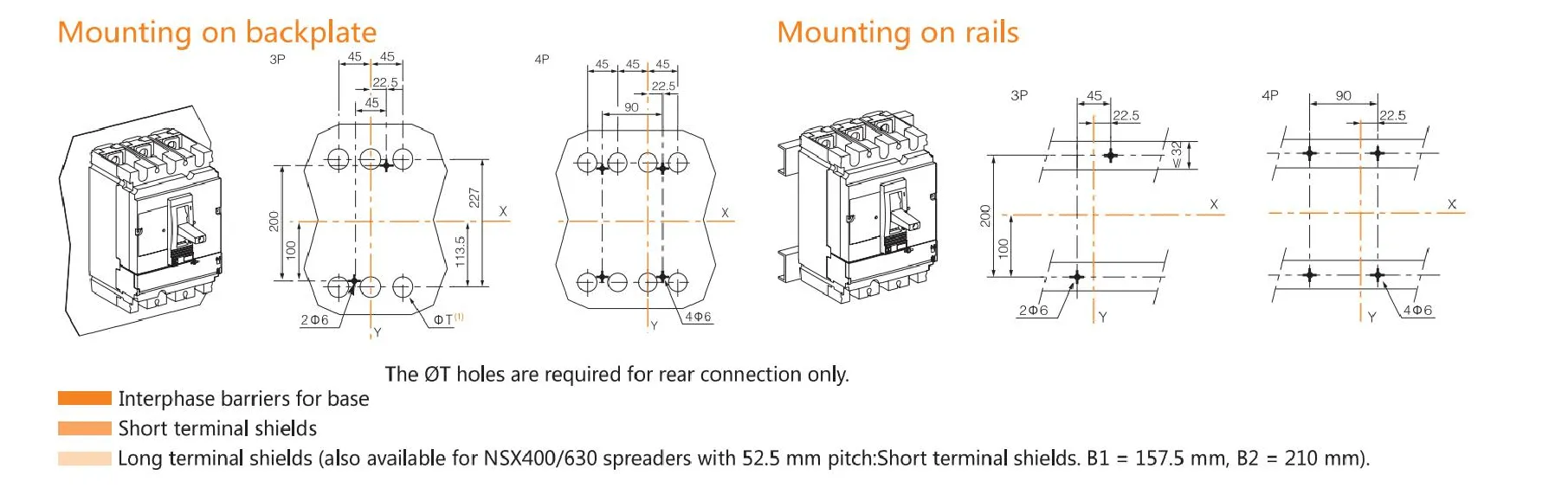

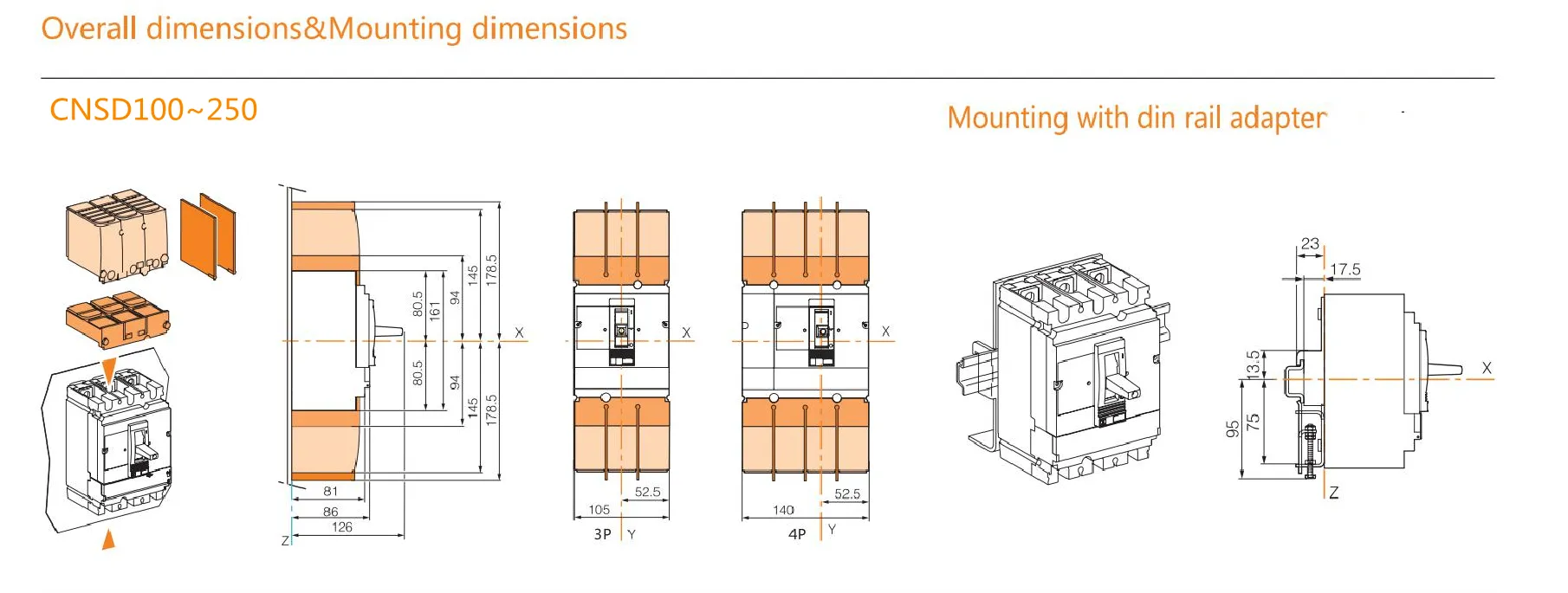

      Dimension

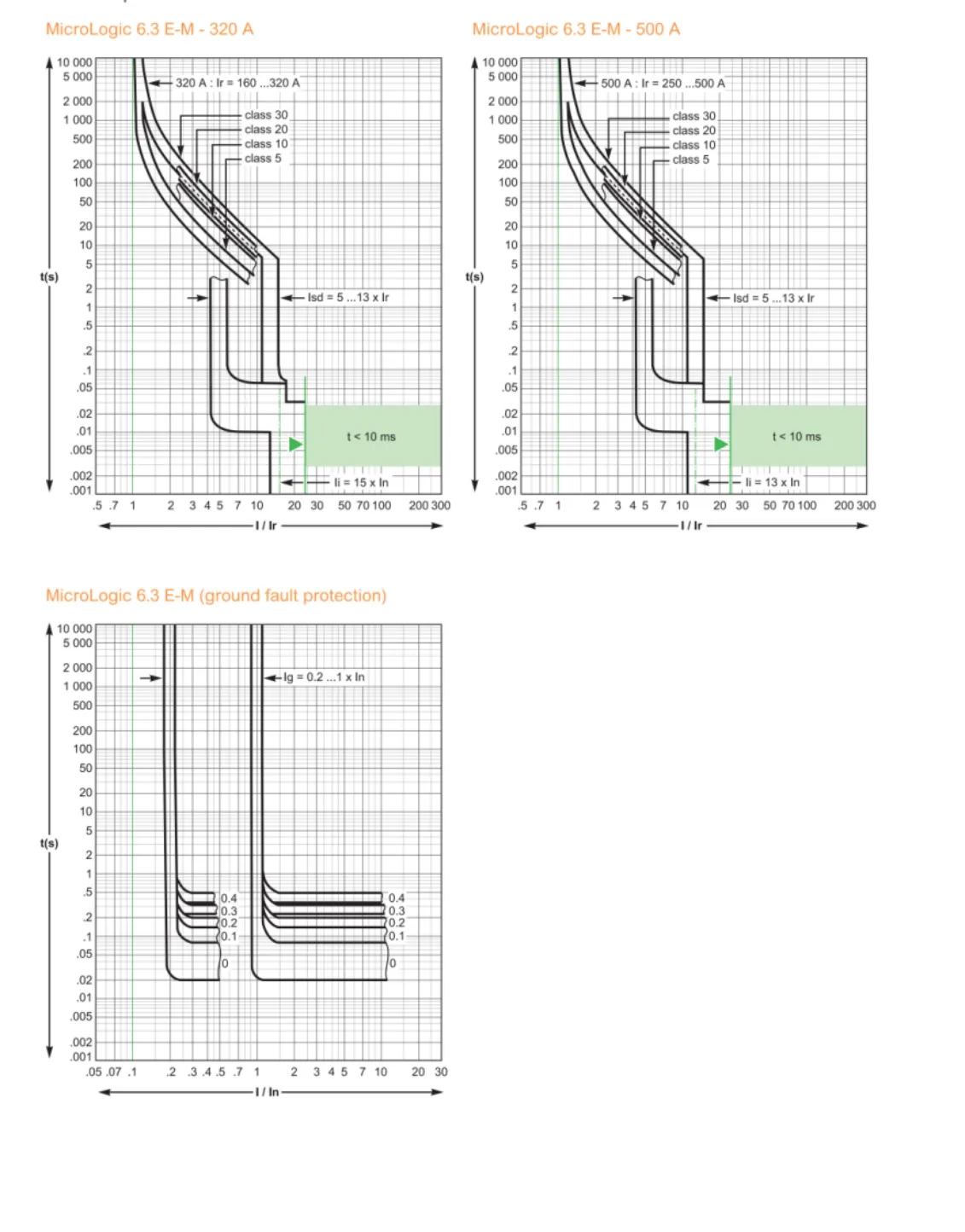

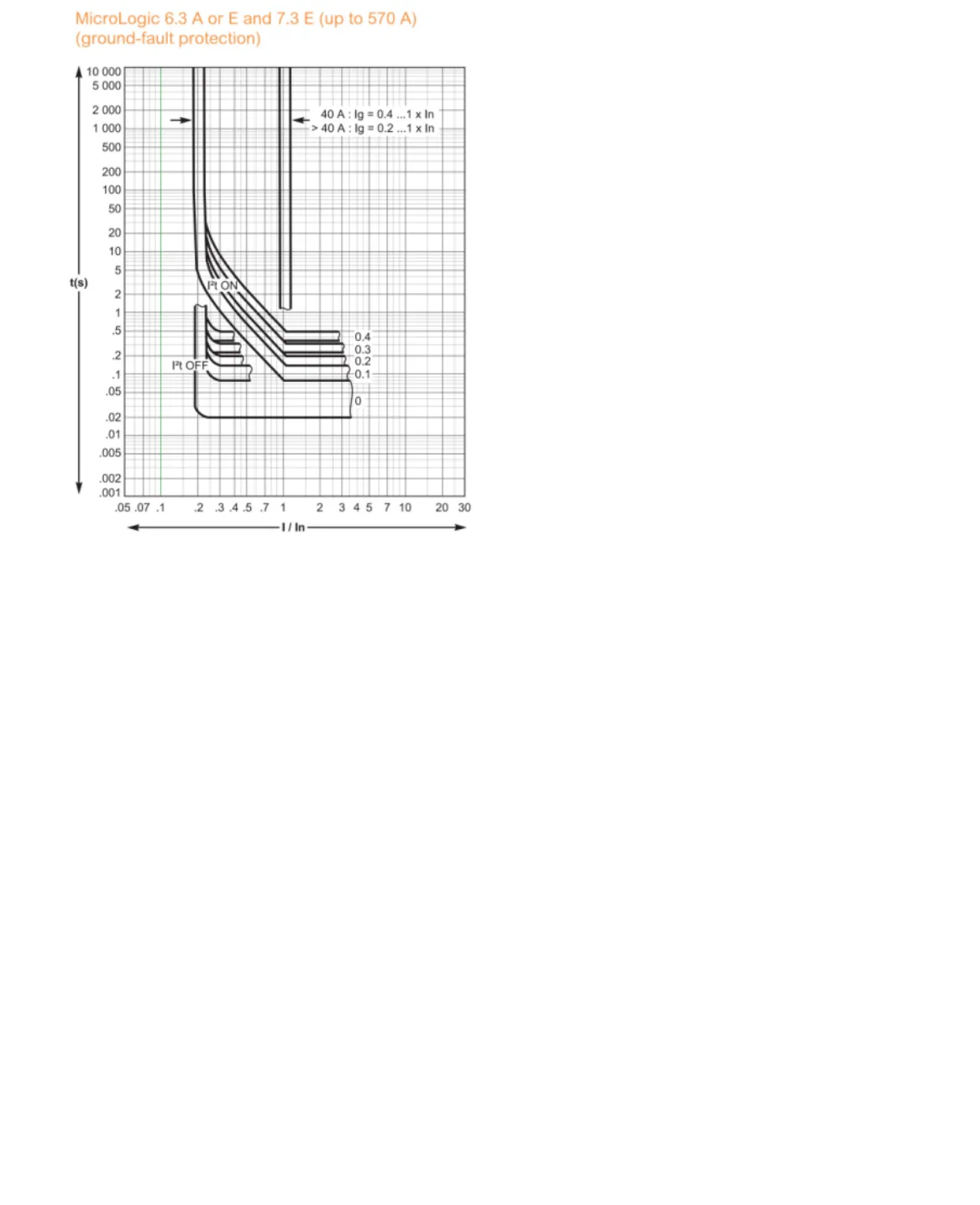

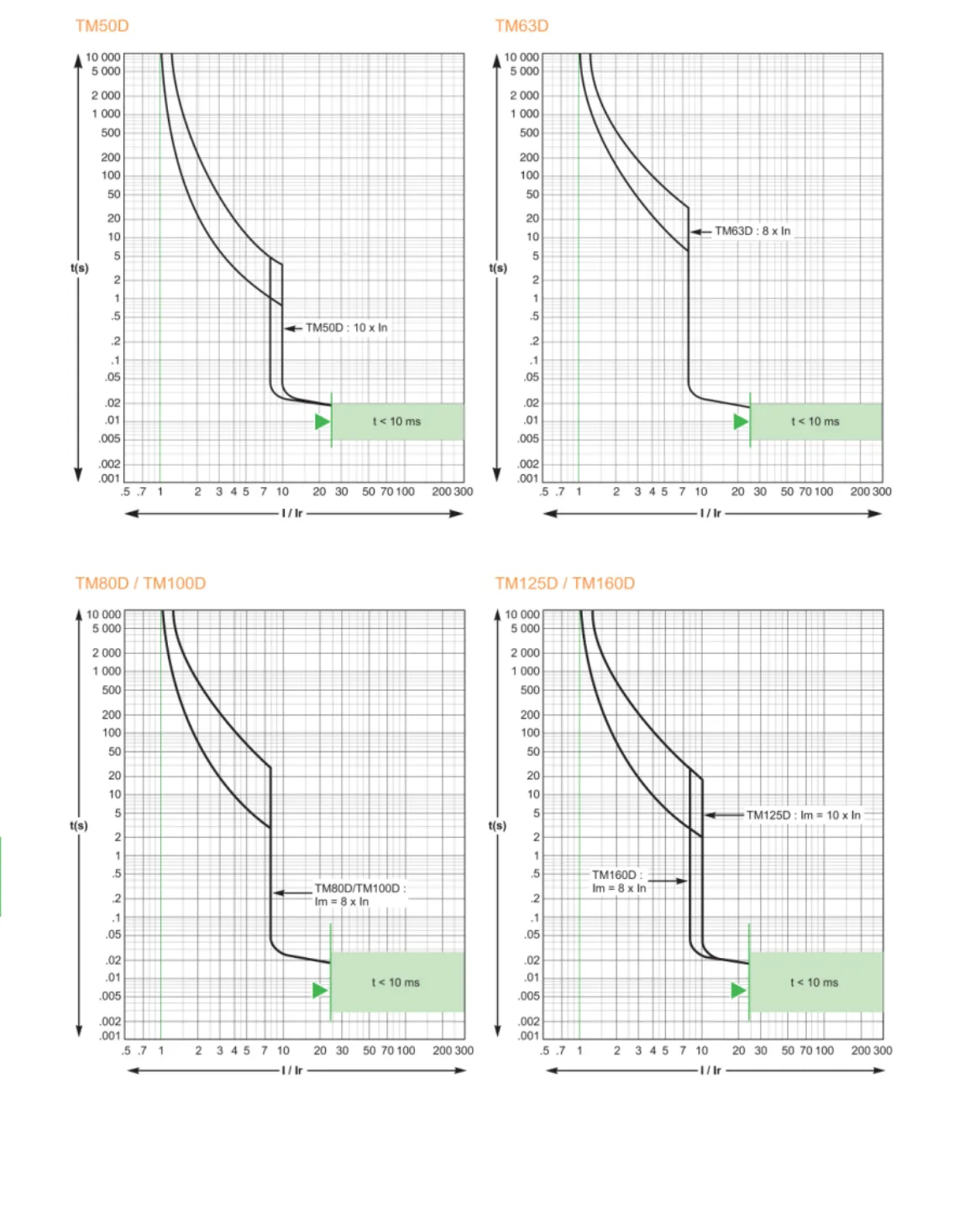

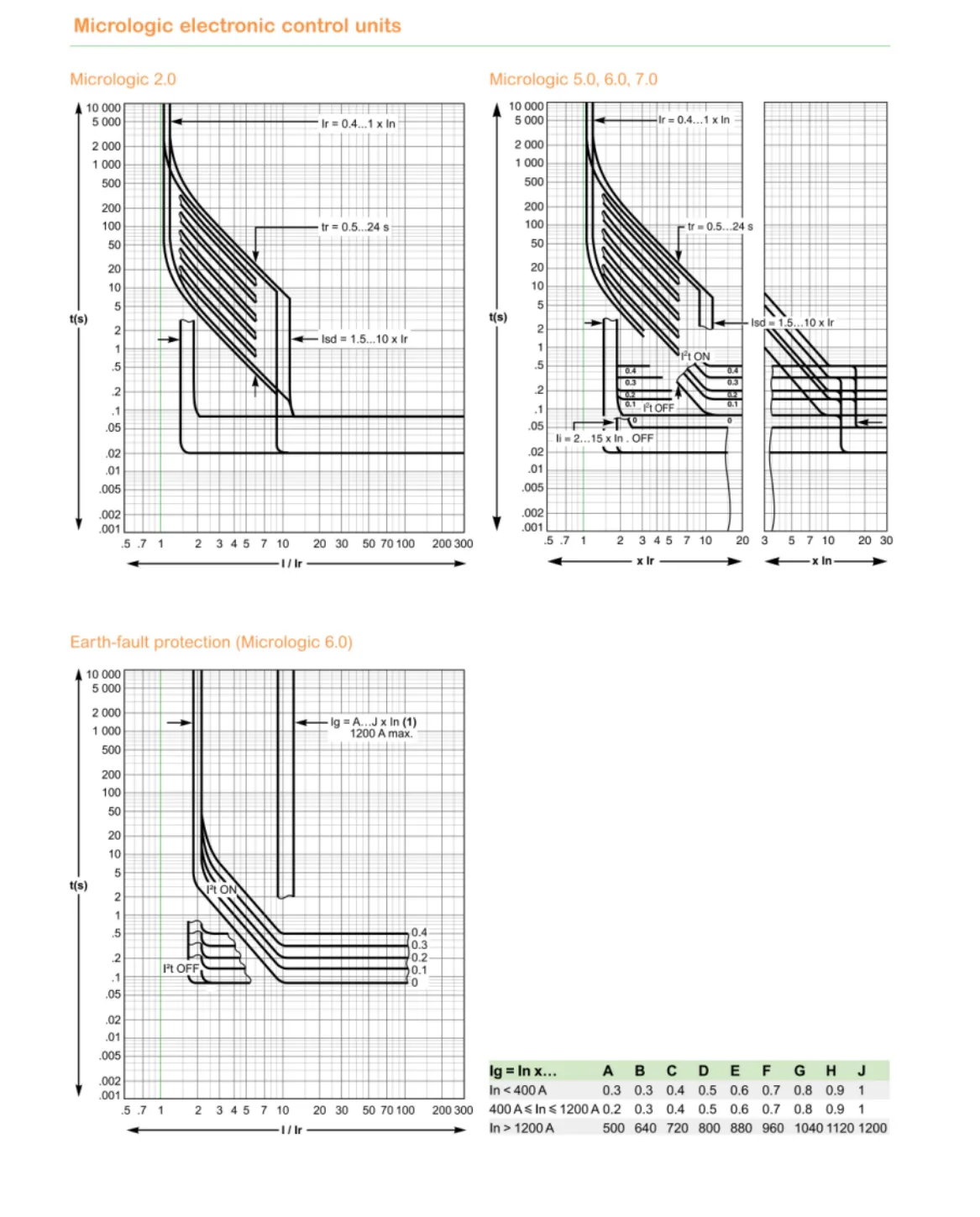

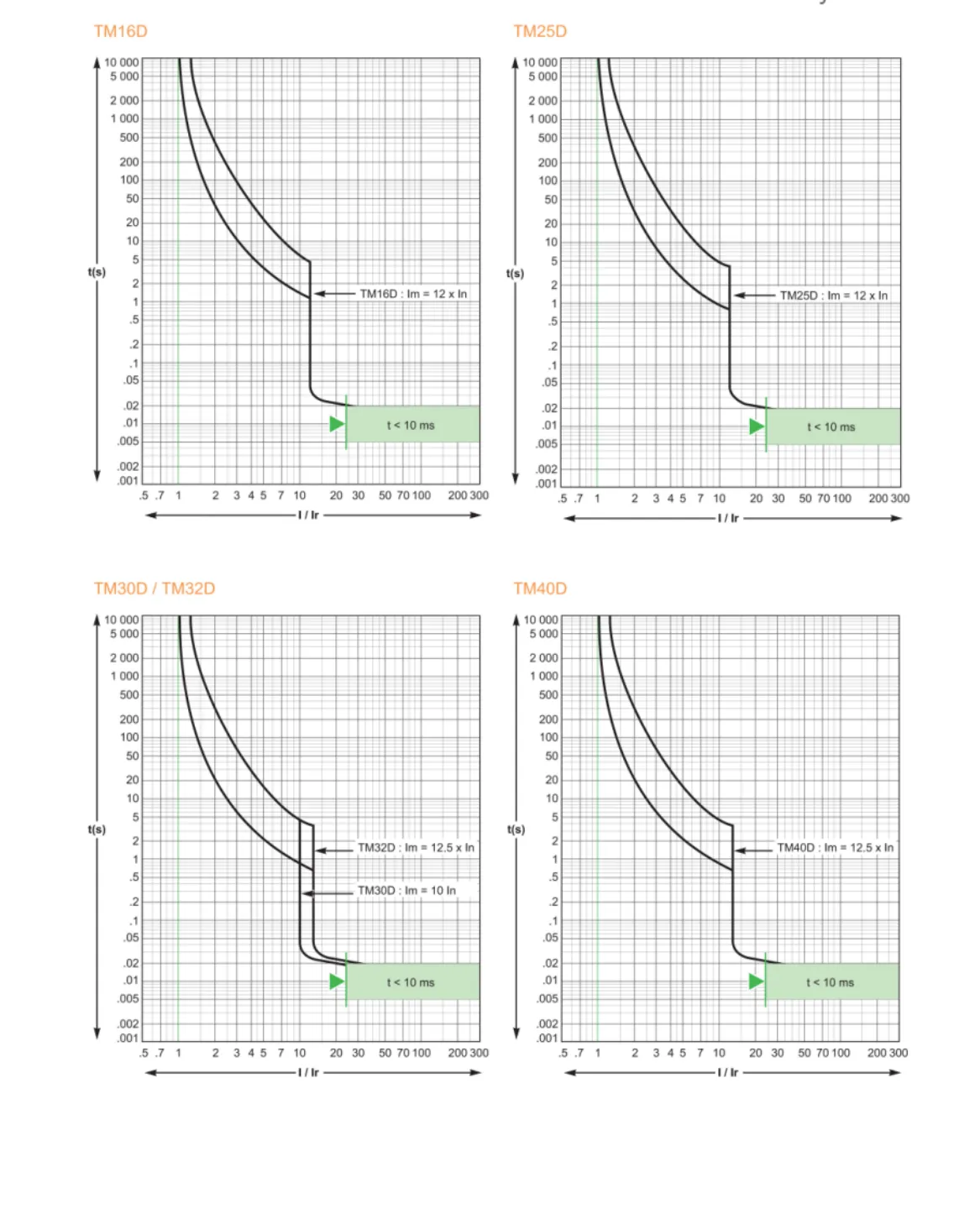

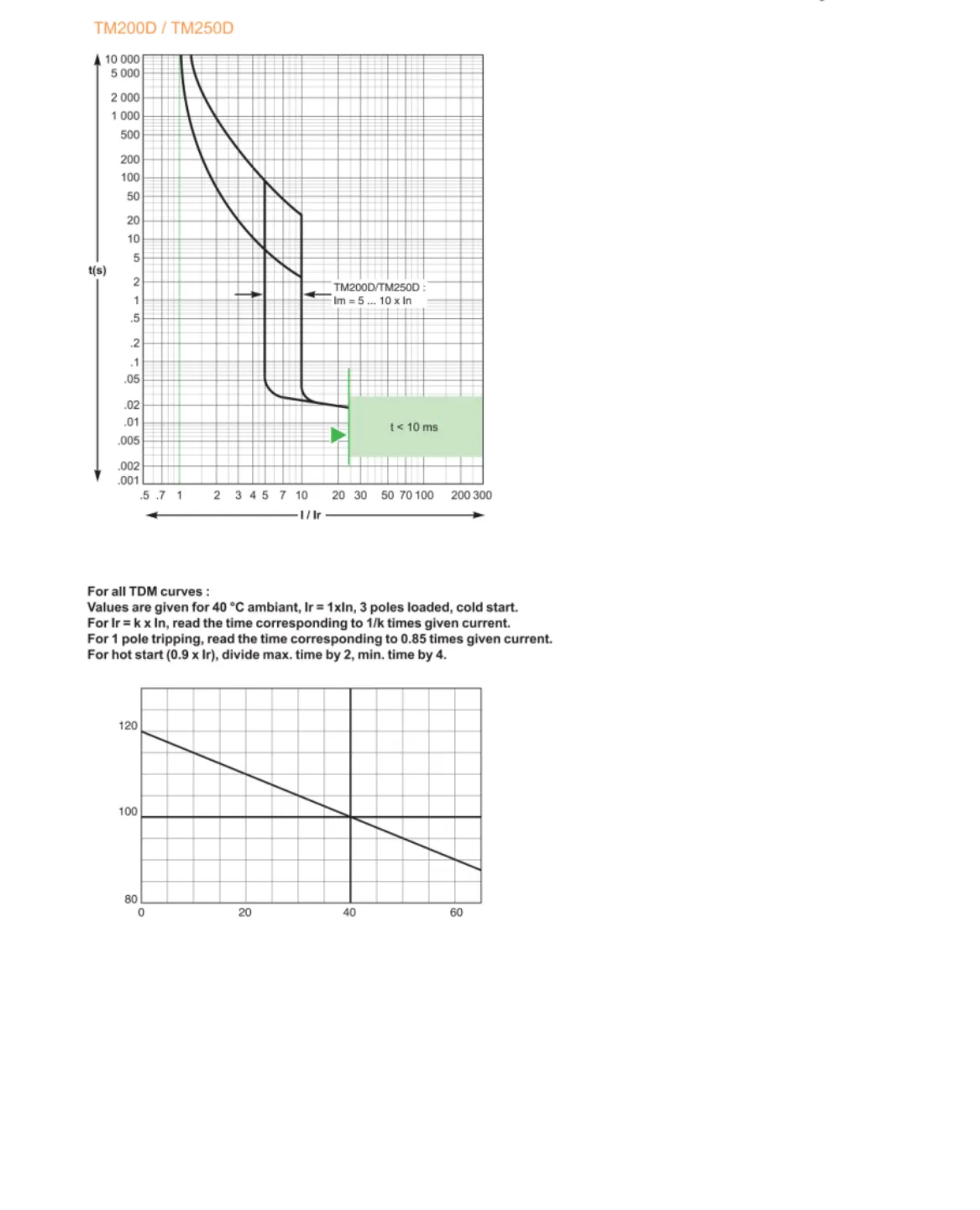

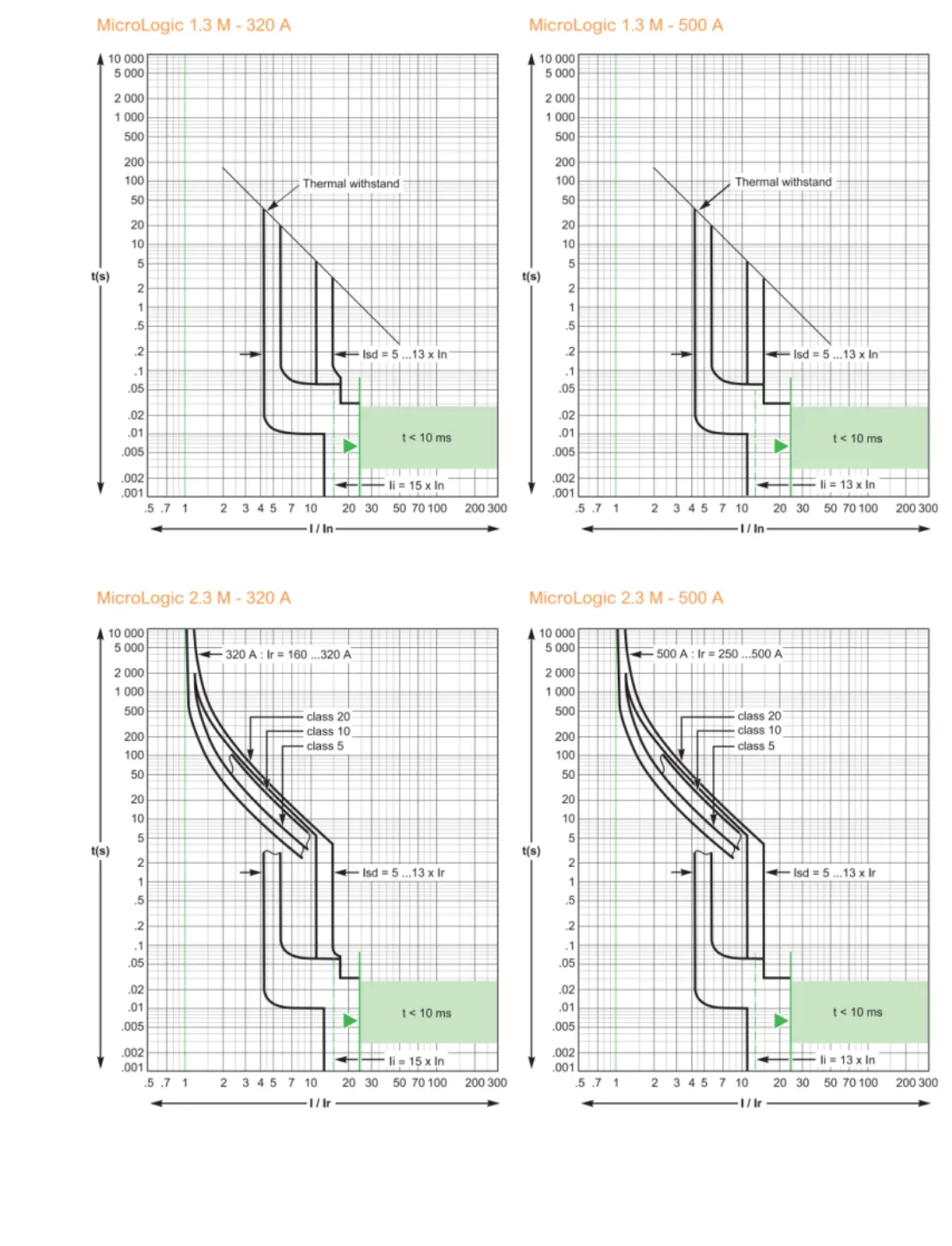

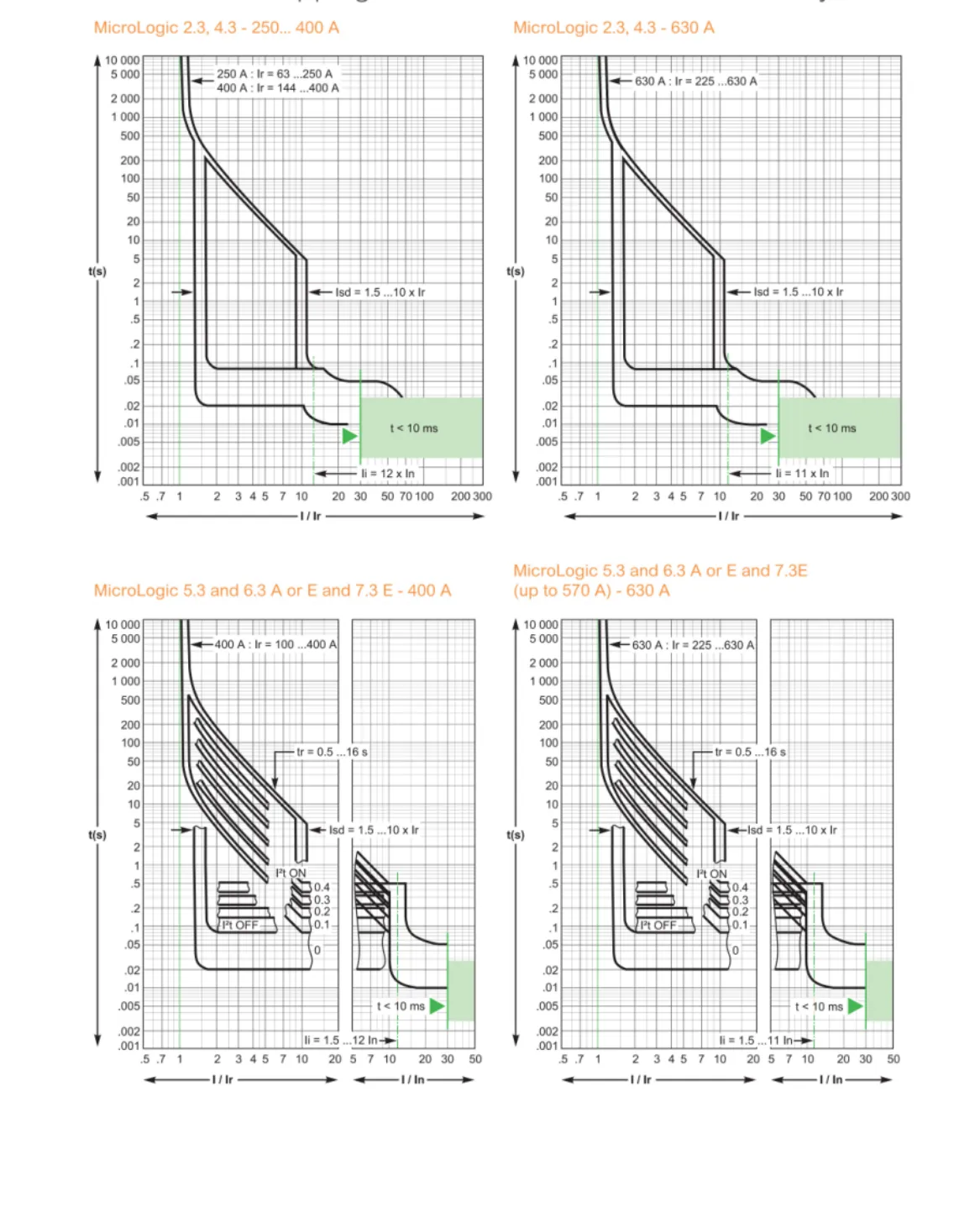

      Tripping Curves

      Packing Data

      ModelQty/CTN(pcs)GW(kg)NW(kg)Carton Size(cm)
      CNSD-100 3P1221.529.242.5*40*24.5
      CNSD-100 4P818.616.840.5*29*31
      CNSD-160 3P122219.742.5*40*24.5
      CNSD-160 4P819.417.640.5*29*31
      CNSD-250 3P122421.542.5*40*24.5
      CNSD-250 4P82119.240.5*29*31
      CNSD-400 3P42421.533*31*30.5
      CNSD-400 4P430.527.548.5*29.5*23
      CNSD-630 3P424.822.333*31*30.5
      CNSD-630 4P431.528.548.5*29.5*23
      CNSD-800 3P114.11245.5*35.5*31.5
      CNSD-800 4P118.215.444.5*36*42.5
      CNSD-1600 3P114.412.345.5*35.5*31.5
      CNSD-1600 4P118.81644.5*36*42.5
