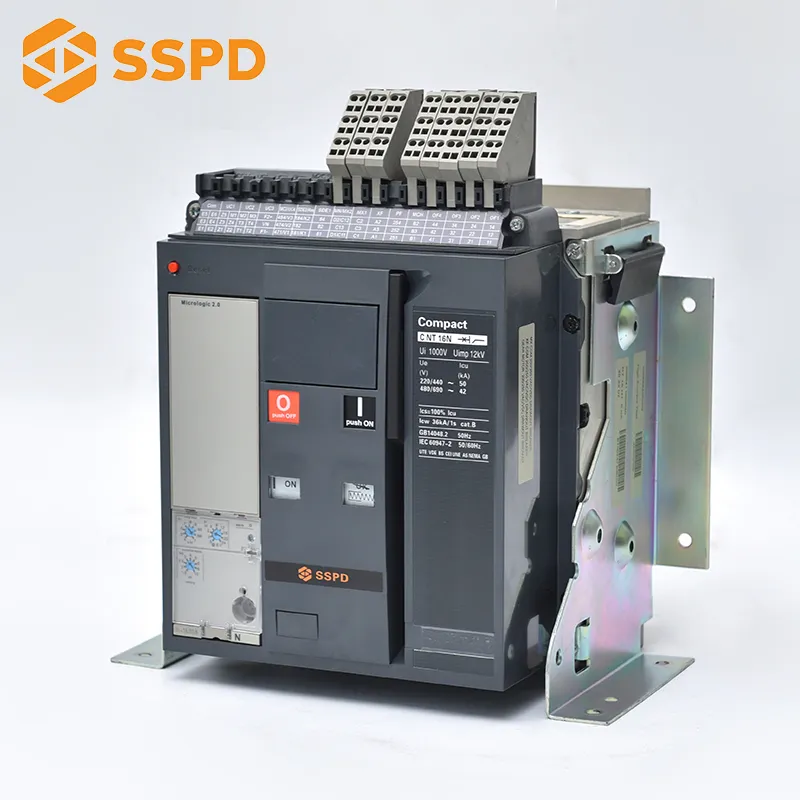

CNT06 to CNT16 Air Circuit Breaker

We have already provided ODM/OEM and other related services to many well-known domestic and foreign manufacturers.
With professional heart, do the professional thing” reflects our commitment to the pursuit of excellent quality.
In order to ensure each MCCB can meet the high standard requirement of performance and safety, every production workshop is equipped with a long-delay, short-delay, instantaneous efficacy desk, with standing voltage calibration desk, mechanical life test rack, intelligent tester, and other testing equipment. We test rigorously for the products’ tripping precision, sensitivity, and reliability of mechanical operation, and the material of key accessories, so as to ensure every product can meet the customer’s quality requirement.

In order to control costs and quality effectively, all accessories of the circuit breaker are designed, molded, and put into continuous production on our own.

Our commitment to all customers is to offer the products with the best cost-performance ratio.

Get Quote Now

    Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

    Get Free Catalog

      Quick Help: Attachments will be downloaded automatically after form submission!

      Functions and Characteristics

      Item No. CNT06 to CNT16
      Common characteristics
      Number of poles  3/4
      Rated insulation voltage(V) Ui 1000
      Impulse withstand voltage(kV) Uimp 12
      Rated operational voltage(V AC 50/60Hz) Ue 690
      Suitability for isolation IEC60947-2
      Degree of pollution    IEC60664-1 3
      CNT selection criteria
      CNT06, CNT08, CNT10, CNT12, CNT16 CNT06, CNT08, CNT10
      Rated current(A) 630,      800,      1000,    1250,    1600 630,      800,      1000
      H1 H2 L1
      Type of application Standard applicatons with low short-circuit currents Applications with medium-level short-circuit currents Limiting circuit breaker for protection of cable-type feeders or upgraded transformer ratings
      Icu/Ics at 440 V 42 kA 50 kA 100 kA
      Icu/Ics at 1000 V  –  –  –
      Icu/Ics at 500 V DC L/R15 ms  –  –  –
      Positon of neutral Letf Letf Letf
      Fixed F F F
      Drawout D D D
      Switch-disconnector version Yes No No
      Front connection Yes Yes Yes
      Rear connection Yes Yes Yes
      Type of MicroLogic control unit A,E,P,H A,E,P,H A,E,P,H

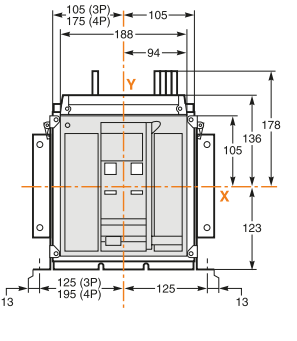

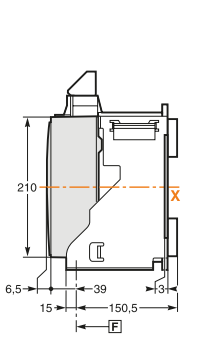

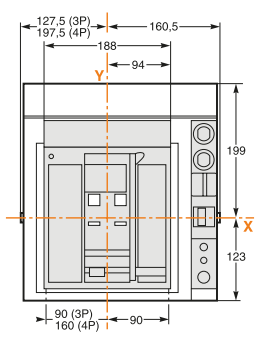

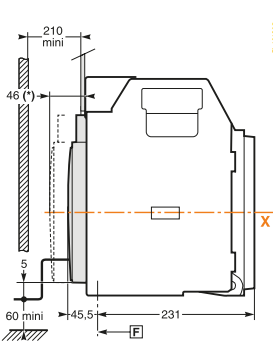

      Dimension

      Advantage

      SSPD MCCB calibration and testing process
      • High precision mold 500+ sets
      • Products exhibit exceptional craftsmanship
      • 48-Hour Anti-Saltspray
      • 20,000+ Life Time
      SSPD molded case circuit breaker temperature rise testing
      • High Breaking Capacity up to 100kA
      • -25℃ Min Temperature

      Customized to your design

      Manufacture products based on customer’s complete specifications.

      Customers provide comprehensive specifications documents covering all product details, specifications include complete technical drawings, bill of materials, material/component requirements, and all dimensions, our Engineering and manufacturing team reviews specifications to ensure producibility, we can also provide some new ideas to help you make your product better!

      Customized Solution

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

        Frequently Asked Questions

        A: We are professional manufacturer in industrial electrical equipment since 1992. Welcome to have online/offline factory tour for further communication.

        A: Sure, please send us an inquiry and tell us your demand, we have a professional team to support you in model selection til the order is placed.

        A: Moulded Case Circuit Breaker, Air Circuit Breaker, Earth Leakage Circuit Breaker, Miniature Circuit Breaker, Contactor, Motor Protection Circuit Breaker, etc.



        A: We strict in high quality. Products has low temperature rise, long life time and good corrosion resistance. Our materials are Mitsubishi PC, DuPont PA66, DMC-A/DMC-2, metal coating-corrosion resistance 72 hours, T2 copper bar, T2 copper pillar, T2 copper plate. All Products pass the test of CQC,CE,CB and TUV.



        A: Yes, 24 months warranty, and our products are 100% inspected. If any problems, let us know immediately, and we will give a satisfactory solution.

        A: Yes, 100% inspection. Products passed all tests: micro resistance test, withstand voltage test, temperature rise test, short time delay characteristic test, long time delay characteristic test and instantaneous trip test for each phase.

        A: Yes sure, we provide OEM/ODM/OBM/OPM service, consult us for details like MOQ and design.



        A: Usually it takes about 25 days for production. If you have urgent requirements, please send us a list to check the stock. We have sufficient stock for materials.



        A: We have flexible payment terms, and accept TT, 30% deposit with 70% balance before shipment.



        A: Welcome! Please let me know your Country/Area first, we will have a check and then process it. Don’t hesitate to contact us for further cooperation.



        A: Yes, for large quantities, we always support with better prices. Also, there are some seasonal promotions. Please contact us for a special discount.



        A: For transportation issues, we will assist in troubleshooting and provide accessories and guidance. If the product cannot be repaired, we will send you replaced one in the next order. For installation issues, we will provide installation instructions or video guidance.



        A: Welcome! We are in Liushi Town,  Wenzhou City, Zhejiang, China. Let us know when you are planning to visit.
